Offset Fir Tree Ties

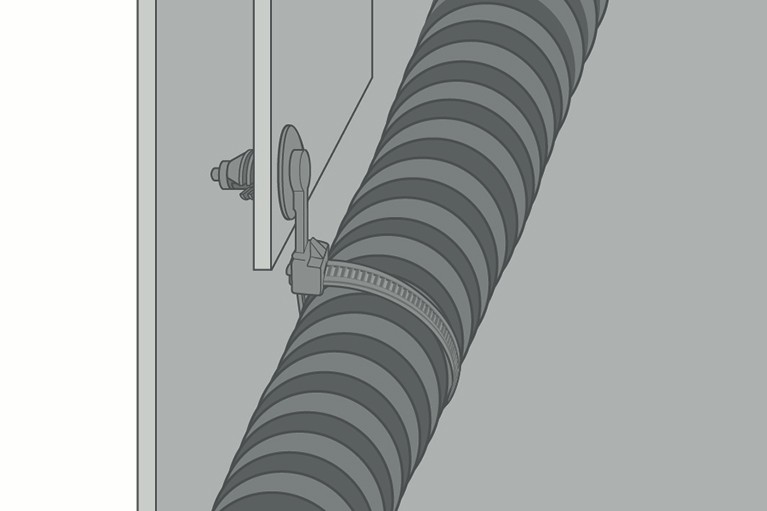

Avery Dennison offers a variety of offset fir tree ties. With many of the same performance benefits as our straight fir tree products, these allow assemblers to guide harnesses, tubes and hoses away from the mating hole when there is interference from other components or harnesses.

Made from high quality polymers to help withstand extreme heat, weather and vibrations, our products comply with many OEM specifications.

Our offset fir tree ties are available in 15-millimeter and 25-millimeter offsets, for hole sizes ranging from M6-threaded holes to 9.5-millimeter round holes. Each product is available in both standard and reverse pawl versions.

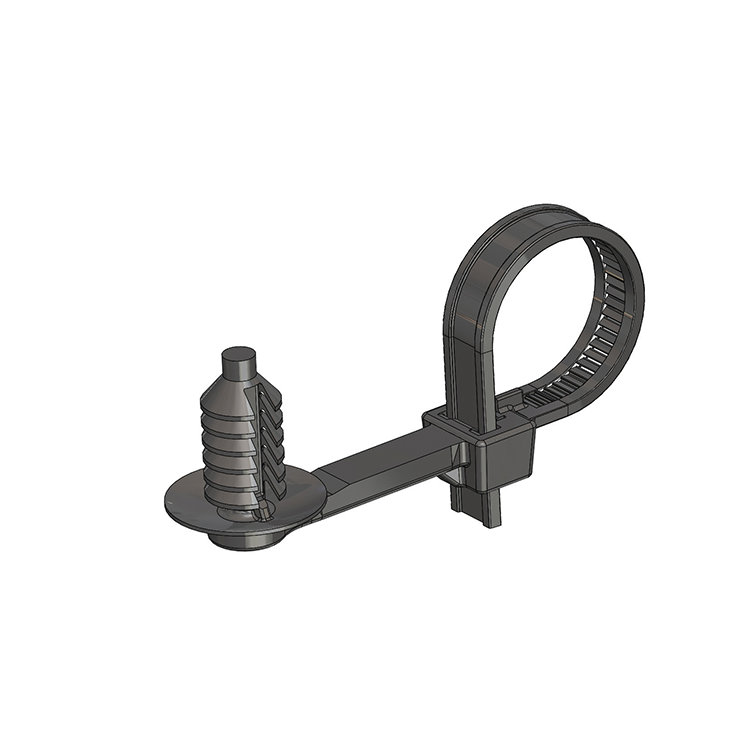

Offset Fir Tree Cable Tie

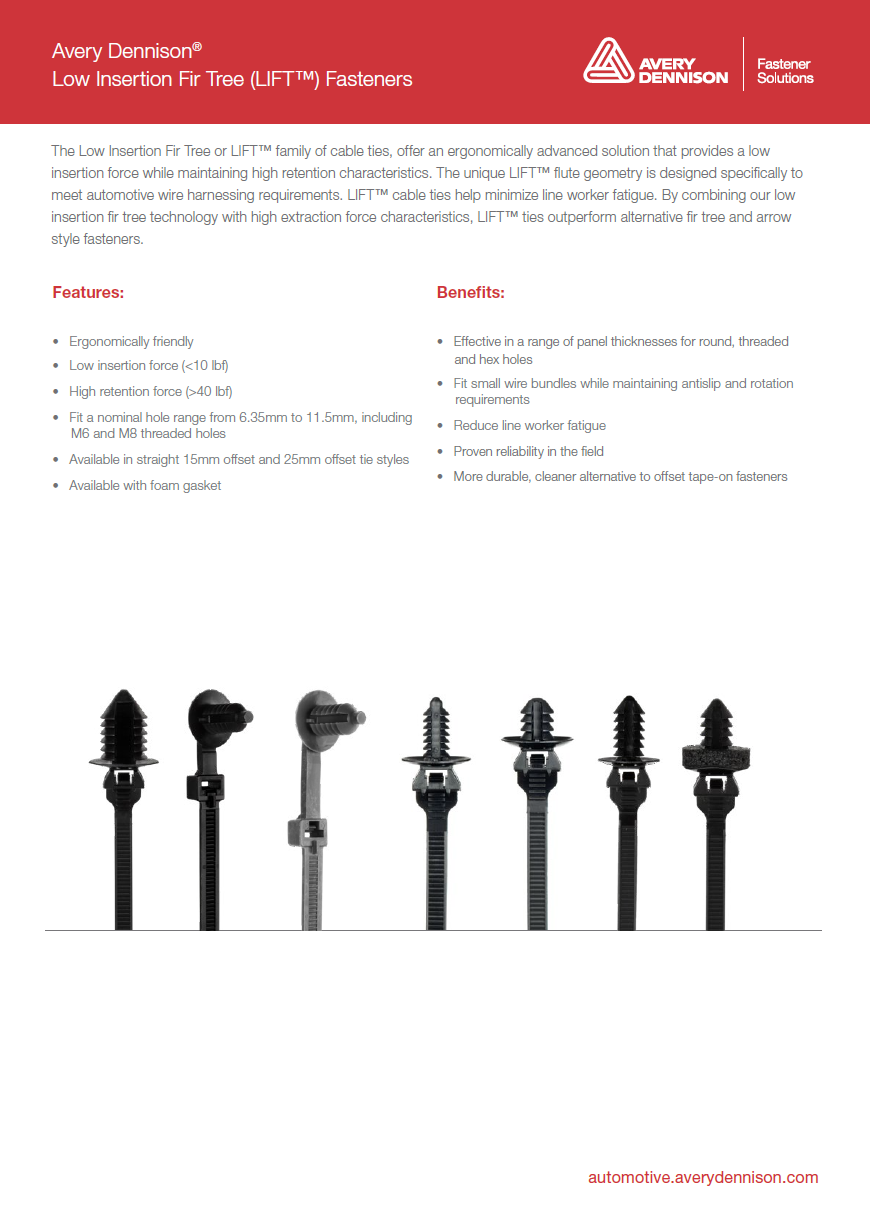

Our LIFT™ cable ties are our most popular. They outperform alternative fir tree and arrow style fasteners. They feature a flute geometry designed specifically to meet automotive wire harnessing requirements. They’re also ergonomically designed to minimize worker fatigue, requiring a low insertion force while maintaining high retention characteristics.

Features
  • Ergonomically friendly
  • Low insertion force (<10 lbf)
  • High retention force (>40 lbf)
  • Fit a nominal hole range from 6.35mm to 11.5mm or M6, M8 and M10 threaded holes
  • Available in 15mm offset and 25mm offset tie styles
  • Available with foam gasket



Benefits
  • Effective in a range of panel thicknesses for round, threaded and hex holes
  • Fits small wire bundles while maintaining antislip properties
  • Reduces line worker fatigue
  • Proven reliability in the field
  • More durable, cleaner alternative to offset tape-on fasteners
