Arrow Ties

Avery Dennison offers a family of arrow style fasteners. They’re engineered for positive engagement feedback when installing critical electrical or fluid systems. Made from resins that perform well at high temperatures, and designed to help reduce noise, vibration and harshness, these solutions comply with many OEM specifications.

We have solutions for both round and oval/rectangular holes. Sizes range from 5-millimeter to 9.5-millimeter round holes, and  6.2-millimeter to 7.0-millimeter x 12+ millimeter ovals. Mating panel thicknesses can range from 0.6 millimeters to 10 millimeters. One part number can be used for a variety of panel thicknesses.

Our highly versatile Directional Slot Ties allow left-to-right adjustments that can compensate for harness alignment and enhance productivity during installation. They’re designed to attach to the long side of an application’s slotted hole, instead of to the ends. This accommodates extended (7-millimeter x 12-millimeter minimum length) oval and rectangular slotted holes for anti-rotation and harness guidance purposes. Our Directional Slot Ties meet both European and US/Japanese hole specifications.

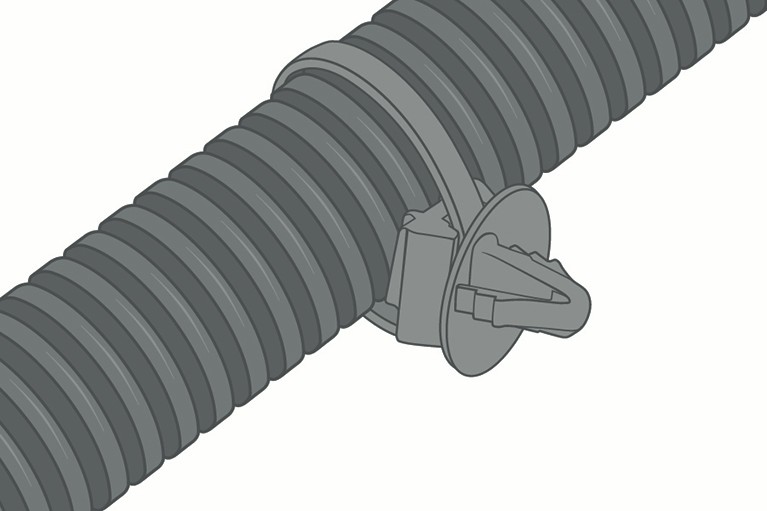

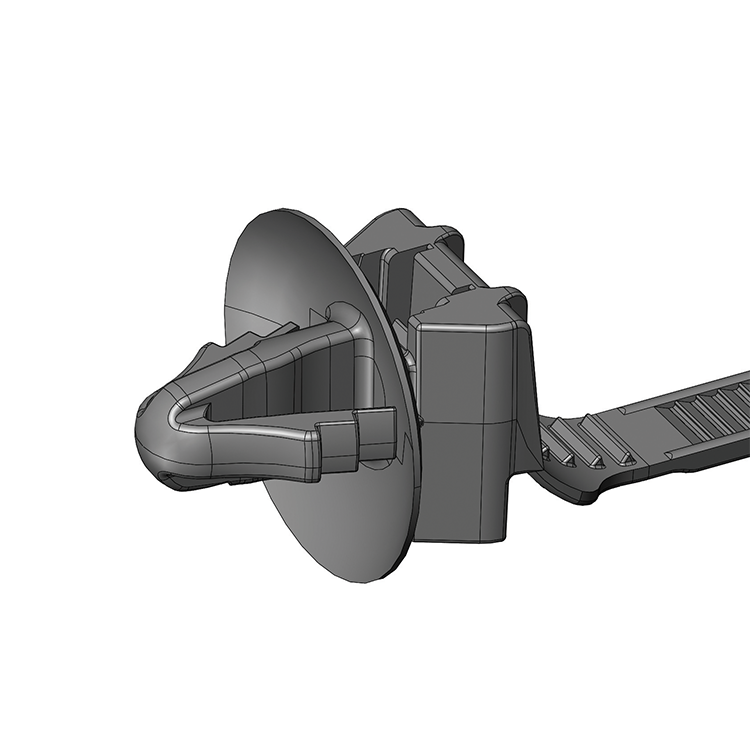

Arrow Tie Fastener


  • Options for round, rectangular or oval holes
  • Low insertion force of < 10 lbf / 44 N
  • Minimum extraction force of > 35 lbf / 155 N
  • Available in a high heat resin that will perform at 150oC continuously
  • Accommodates curved sheet metal surfaces
  • 7mm x 12mm ties securely attach to the long sides of rectangular and oval holes instead of to the ends


  • Deeper dish design results in better retention and reduces noise, vibration and harshness (NVH)
  • Satisfies panel thicknesses ranging from 0.6mm to 3.6mm
  • Continuous slot adjustment improves assembly efficiency
  • Fastens harnesses of various bundle diameters without rotation, slippage or shearing
  • Range of offsets allows redirection of wire harness
