Offset Arrow Slot Ties

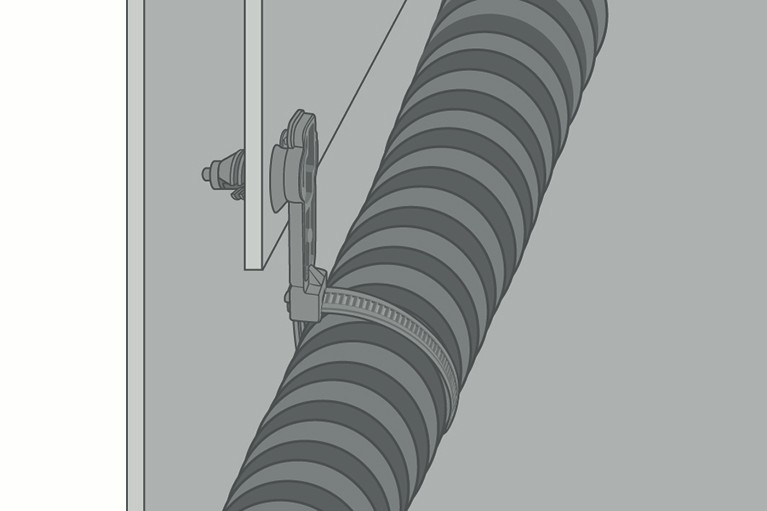

Avery Dennison offers a variety of offset arrow-style fasteners. Building on our oval/slot arrow family of products, they allow users to guide harnesses, tubes and hoses away from the mating hole when there is interference from other components or harnesses. Made from resins that perform well at high temperatures, and designed to help reduce noise, vibration and harshness, these solutions comply with many OEM specifications.

We offer solutions in 15-millimeter, 25-millimeter, and 35-millimeter offsets, for hole sizes ranging from 6.2-millimeter x 12+ millimeter to 7.0-millimeter x 12+ millimeter. Each is available in both standard and reverse pawl versions.

Our highly versatile Directional Slot Ties allow left-to-right adjustments that can compensate for harness alignment and enhance productivity during installation. They’re designed to attach to the long side of an application’s slotted hole, instead of to the ends. This accommodates extended (7-millimeter x 12-millimeter minimum length) oval and rectangular slotted holes for anti-rotation and harness guidance purposes. Our Directional Slot Ties meet both European and US/Japanese hole specifications.

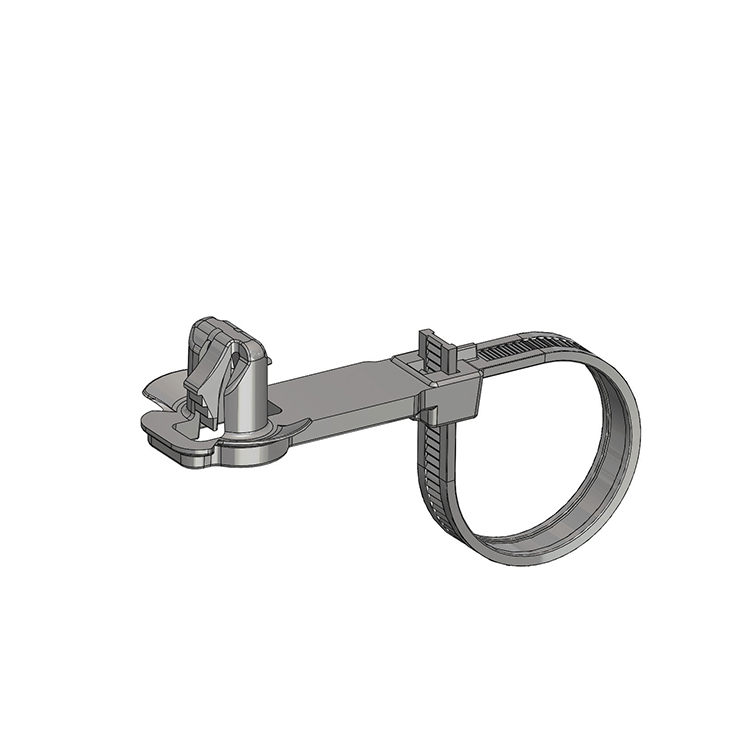

Offset Arrow Tie Fastener


  • Options for round, rectangular or oval holes
  • Low insertion force of < 10 lbf / 44 N
  • Minimum extraction force of > 35 lbf / 155 N
  • Available in a high heat resin that will perform at 150oC continuously
  • Accommodates curved sheet metal surfaces
  • 7mm x 12mm ties securely attach to the long sides of rectangular and oval holes instead of to the ends


  • Deeper dish design results in better retention and reduces noise, vibration and harshness (NVH)
  • Satisfies panel thicknesses ranging from 0.6mm to 3.6mm
  • Continuous slot adjustment improves assembly efficiency
  • Fastens harnesses of various bundle diameters without rotation, slippage or shearing
  • Range of offsets allows redirection of wire harness
