Fine Fabric™ System 500™ Fasteners

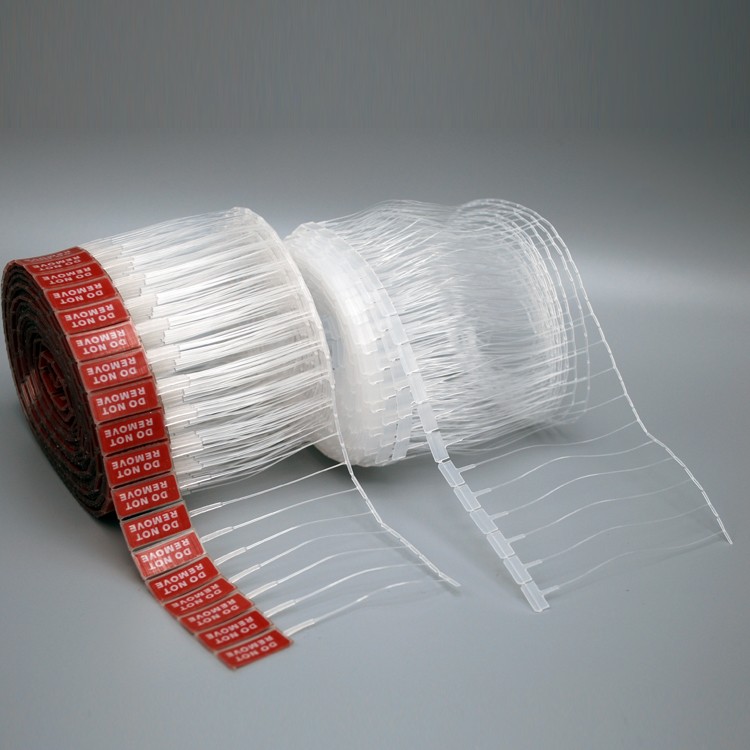

Fine Fabric™ System 500™ fasteners come in reels of 500 fasteners --that's more than most standard attaching tools, reducing time spent reloading smaller clips of fasteners. These fasteners are 25% thinner than our standard fasteners and feature no sharp edges at either end of the fastener. They are also available as a custom graphic fastener. These paddle fasteners prevent ticket switching and have no waste strip to discard when the operator is finished.

Attribute
Specifications
Style Paddle
Loading Type Reel
Per Reel* 500
Package Quantity* 5M
Case Quantity* 50M

*M = 1000

Product # Material Nominal Filament Length Minimum Applied Strength Color
17041-0 Recycled (RPET) 1.63” (41mm)
2.5 lbf (1.13 kgf)
Natural
17042-0 Recycled (RPET)
1.63” (41mm)
2.5 lbf (1.13 kgf)
Black
17043-0 Recycled (RPET)
1.63” (41mm)
2.5 lbf (1.13 kgf)
White
16024-0 Polypropylene 0.75” (19mm)  2.0 lbf (0.91 kgf)  Natural
16023-0 Polypropylene 1.77” (45mm)  2.0 lbf (0.91 kgf)  Natural
16022-0 Polypropylene 2.76” (70mm)  2.0 lbf (0.91 kgf)  Natural
16026-0 Nylon 0.75” (20mm)  3.5 lbf (1.59 kgf)  Natural
16025-0 Nylon 1.77” (45mm)  3.5 lbf (1.59 kgf)  Natural

GF13N Polypropylene 2.15” (54.6mm)  2.0 lbf (0.91 kgf)  Natural
GF13W Polypropylene 2.15” (54.6mm)  2.0 lbf (0.91 kgf)  White
GF13B Polypropylene 2.15” (54.6mm)  2.0 lbf (0.91 kgf)  Black
GF13S Polypropylene 2.15” (54.6mm) 2.0 lbf (0.91 kgf)  Special

GF125N Polypropylene 1.7” (43mm)  2.0 lbf (0.91 kgf)  Natural
GF125W Polypropylene 1.7” (43mm)  2.0 lbf (0.91 kgf)  White
GF125B Polypropylene 1.7” (43mm)  2.0 lbf (0.91 kgf)  Black
GF125S Polypropylene 1.7” (43mm) 2.0 lbf (0.91 kgf)  Special

GF12N Polypropylene 1.18” (30mm)  2.0 lbf (0.91 kgf)  Natural
GF12W Polypropylene 1.18” (30mm)  2.0 lbf (0.91 kgf)  White
GF12B Polypropylene 1.18” (30mm)  2.0 lbf (0.91 kgf)  Black
GF12S Polypropylene 1.18” (30mm) 2.0 lbf (0.91 kgf) Special
