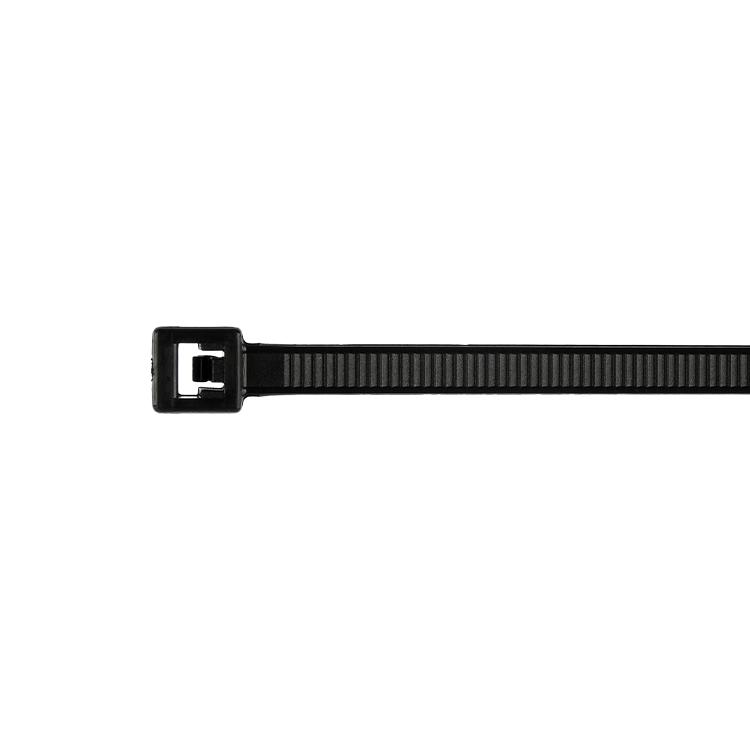

8" Slim Line Cable Ties

Our Slim Line Ties feature an overall strap length of 8" (203.3mm). Their small heads and narrow cross sections make them a good choice for use in limited space.

Also available with an overall strap length of 6"(152.4mm) and 15"(381mm).

Attribute
Specifications
Bundle Diameter 0.06" - 2.13" (1.6mm - 53.9mm)
Width 0.1" (2.5mm)
Thickness 0.044" (1.1mm)
Minimum Tensile Loop Strength 18 lbf. (80 N)
Strap Length 8.0" (203.2mm)
Quantity Per Case* 5M

*M = 1000

Part # Environmental Requirements Color Operating Temperature Quantity Per Bag*
10325-2 General Purpose Natural -40 to 85°C / -40 to 185°F 1,000
10326-2 Heat Stabilized Black -40 to 115°C / -40 to 239°F 1,000
10327-2 Weather/UV Resistant Black -40 to 85°C / -40 to 185°F 1,000
10328-2 General Purpose Natural -40 to 85°C / -40 to 185°F 100
10330-2 Weather/UV Resistant Black -40 to 85°C / -40 to 185°F 100
Part # Military Specifications Panduit Cross Reference Thomas and Betts Cross Reference
10325-0 MS-3367-4-9 PLT2M-M TY232M
10326-0   PLT2M-M0
10327-0 MS-3367-4-0 PLTM-MO TY232MX
10328-0 MS-3367-4-9 PLT2M-C TY5232M
10330-0 MS-3367-4-0 PLT2M-CO TY5232MX
