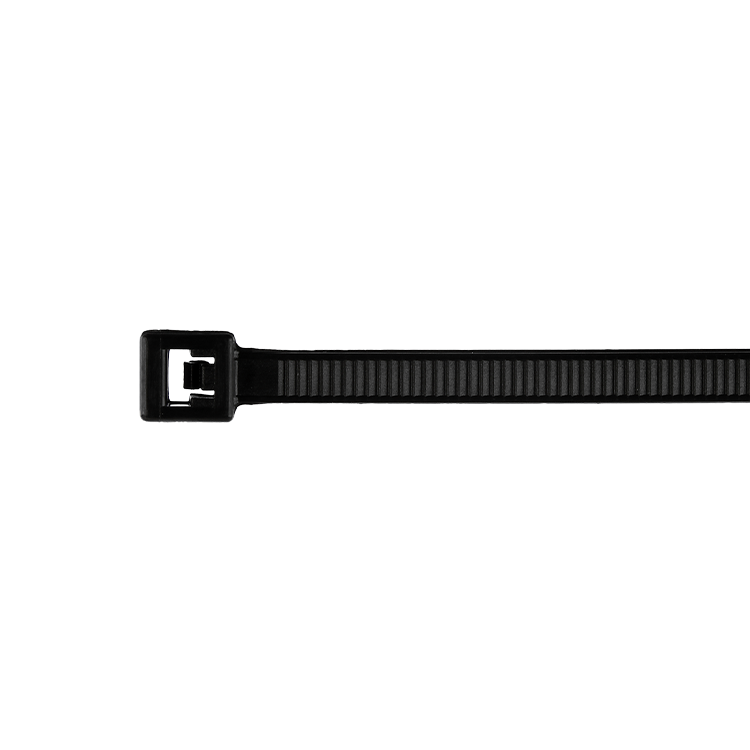

15" Slim Line Ties

Our Slim Line Ties feature an overall strap length of 15" (381mm). Their small heads and narrow cross sections make them a good choice for use in limited space.

Also available with an overall strap length of 6" (152.4mm) and 8" (203.3mm).

Attribute
Specifications
Bundle Diameter 0.06" -4.00" (1.6mm - 101.6mm)
Width 0.14" (3.6mm)
Thickness 0.055" / 1.4mm
Minimum Tensile Loop Strength 40 lbf. (178 N)
Strap Length 15.0" / 381mm

*M = 1000

Part # Environmental Requirements Color Operating Temperature Quantity Per Bag* Quantity Per Case
10335-2 General Purpose Natural -40 to 85°C / -40 to 185°F 1,000 5,000
10336-2 Heat Stabilized Black -40 to 115°C / -40 to 239°F 1,000 5,000
10338-2 General Purpose Natural -40 to 85°C / -40 to 185°F 100 1,000
10339-2 Heat Stabilized Black -40 to 115°C / -40 to 239°F 100 1,000
Part # Panduit Cross Reference Thomas and Betts Cross Reference
10335-0 PLT4I-M TY244M
10336-0   TY244MX
10338-0 PLT4I-C TY5244M
10339-0    TY5244MX
