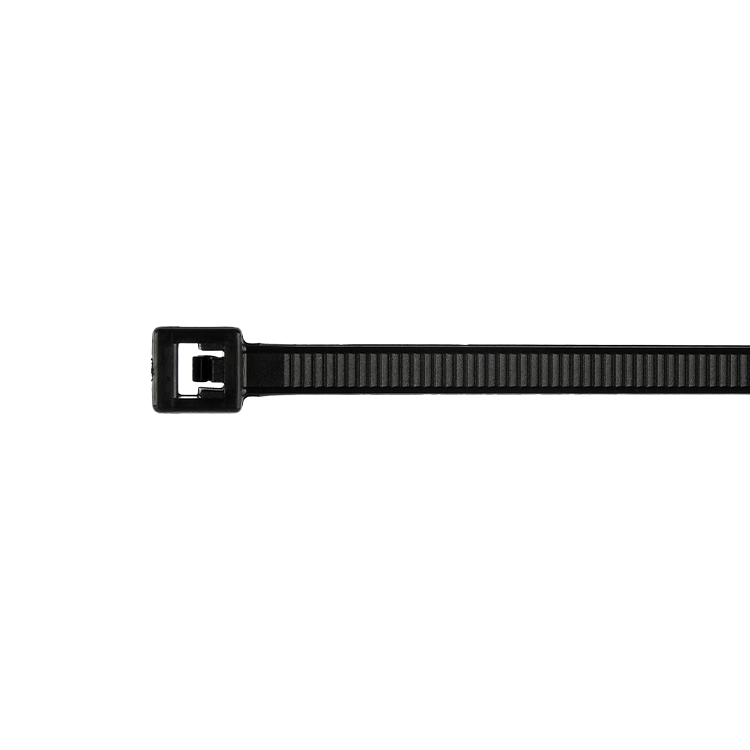

6" Slim Line Cable Ties

Our Slim Line Ties feature an overall strap length of 6" (152.4mm). Their small heads and narrow cross sections make them a good choice for use in limited space.

Also available with an overall strap length of 8" (203.3mm) and 15" (381mm).

Attribute
Specifications
Bundle Diameter 0.06" - 1.50" (1.6mm - 38.1mm)
Width 0.094" (2.4mm)
Thickness 0.044" (1.1mm)
Minimum Tensile Loop Strength
 18 lbf. (80 N)
Strap Length 6" (152.4mm)
Quantity Per Case* 5M

*M = 1000

Part # Environmental Requirements Color Operating Temperature Quantity Per Bag*
10325-0 General Purpose
 Natural -20 to 85°C / -68 to 185°F
 1M
10326-0 Heat Stabilized
 Black -40 to 105°C / -40 to 221°F
 1M
10327-0 Weather/UV Resistant
 Black
 -40 to 80°C / -40 to 176°F
 1M
10328-0 General Purpose
 Natural -20 to 85°C / -68 to 185°F
 100
10330-0 Weather/UV Resistant
 Black
 -40 to 80°C / -40 to 176°F
 100
Part # Military Specifications Panduit Cross Reference Thomas and Betts Cross Reference
10325-0 MS-3367-4-9 PLT2M-M TY232M
10326-0   PLT2M-M0
10327-0 MS-3367-4-0 PLTM-MO TY232MX
10328-0 MS-3367-4-9 PLT2M-C TY5232M
10330-0 MS-3367-4-0 PLT2M-CO TY5232MX
