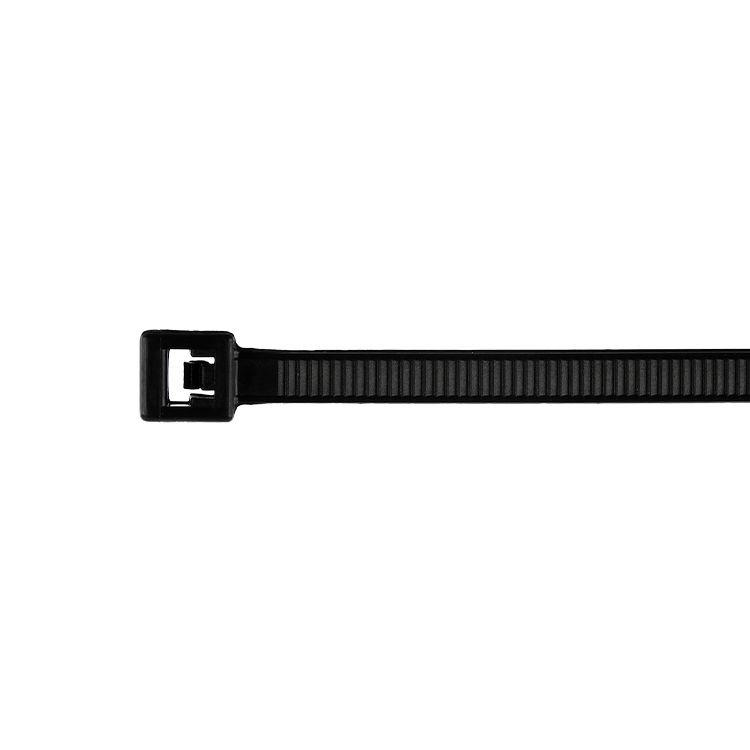

8" Intermediate Cable Ties

These Intermediate Cable Ties feature an overall strap length of 8"(203.2mm). They are designed for use in heavier applications, having a minimum tensile loop strength of 40lbs (18.14Kg).

These ties are available as weather resistant, which is perfect for outdoor applications with greater resistant to ultraviolet lights. There is also a heat stabilized option which is perfect for use in high temperature applications.

Also available with an overall strap length of 5.5"(139.7mm).

Atttribute
Specifications
Bundle Diameter 0.06" - 2.13" (1.6mm - 53.9mm)
Width 0.14" (3.6mm)
Thickness 0.054" (1.4mm)
Minimum Tensile Loop Strength 40 lbf. (178 N)
Strap Length 8.0" (203.2mm)
Quantity Per Case* 5M

* M = 1000

Part # Environmental Requirements Color Operating Temperature Quantity Per Bag*
08377-0 General Purpose
 Natural -20 to 70°C / -68 to 158°F
 1M
08380-0 Weather/UV Resistant
 Black -40 to 80°C / -40 to 176°F
 1M
08385-0 General Purpose
 Natural -40 to 85°C / -40 to 185°F
 100
08386-0 Weather/UV Resistant
 Black -40 to 80°C / -40 to 176°F
 100
08401-0 Heat Stabilized
 Black -40 to 105°C / -40 to 221°F
 1M
08664-0 General Purpose
 Green -40 to 85°C / -40 to 185°F
 1M
08671-0 General Purpose
 Blue -40 to 85°C / -40 to 185°F
 1M
08690-0 General Purpose
 Red -40 to 85°C / -40 to 185°F
 1M
08782-0 General Purpose
 Yellow -40 to 85°C / -40 to 185°F
 1M
Part # Military Specifications Panduit Cross Reference Thomas and Betts Cross Reference
08377-0 MS-3367-5-9 PLT2I-M TY242M
08380-0 MS-3367-5-0 PLT2I-MO TY242MX
08385-0 MS-3367-5-9 PLT2I-C TY5242M
08386-0 MS-3367-5-0 PLT2I-CO TY5242MX
08401-0   PLT2I-M30
08664-0 MS-3367-5-5 PLT2I-M5
08671-0 MS-3367-5-6 PLT2I-M6
08690-0 MS-3367-5-2 PLT2I-M2
08782-0 MS-3367-5-4
 PLT2I-M4
