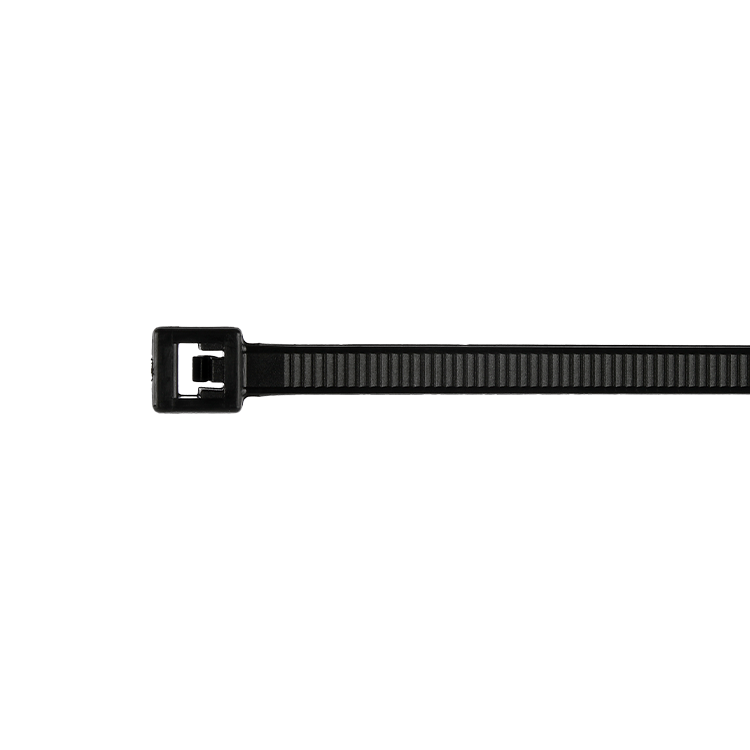

5.5" Intermediate Cable Ties

These Intermediate Cable Ties feature an overall strap length of 5.5"(139.7mm). They are designed for use in heavier applications, having a minimum tensile loop strength of 40lbs (18.14Kg).

These ties are available as weather resistant, which is perfect for outdoor applications with greater resistant to ultraviolet lights. There is also a heat stabilized option which is perfect for use in high temperature applications.

Also available with an overall strap length of 8"(203.2mm).

Atttribute
Specifications
Bundle Diameter 0.06" - 0.88" (1.6mm - 22.2mm)
Width .130" (3.3mm)
Thickness .048" (1.2mm)
Minimum Tensile Loop Strength 40 lbf. (178 N)
Strap Length 5.5" (139.7mm)
Quantity Per Case* 5M

*M = 1000

Part # Environmental Requirements Color Operating Temperature Range Quantity Per Bag*
08376-0
 General Purpose
 Natural
 -40 to 85°C / -40 to 185°F
 1M
08383-0
 General Purpose
 Natural
 -40 to 85°C / -40 to 185°F
 100
08384-0
 Weather/UV Resistant
 Black
 -40 to 80°C / -40 to 176°F
 1M
08400-0
 Heat Stabilized
 Black
 -40 to 105°C / -40 to 221°F
 1M
08431-0
 Weather/UV Resistant
 Black
 -40 to 80°C / -40 to 176°F
 1M
Part # Military Specifications Panduit Cross Reference Thomas and Betts Cross Reference
08376-0
 MS-3367-5-9
 PLT1.5I-M
 TY24M
08383-0 MS-3367-5-9
 PLT1.51-C
 TY524M
08384-0
 MS-3367-5-0
 PLT1.5I-CO
 TY524MX
08400-0
   PLT1.51-M31
 TYH24M
08431-0
 MS-3367-5-0
 PLT1.5I-MO
 TY24MX
