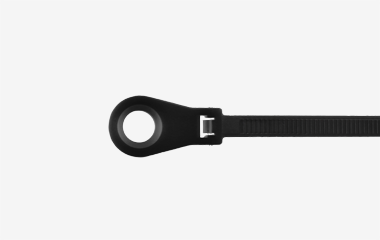

7.5" Screw Mount Cable Ties

Our Screw Mount Ties feature an overall strap length of 7.5" (190.5mm) and are ideal for use when precision matters. They keep applications secure and positioned in exact position. Often used when a part is pre-mounted to a surface prior to the final assembly.

Also available with an overall strap length of 11"(279.4mm) and 14.5"(368.3mm).

Attribute
Specifications
Bundle Diameter 0.06"- 1.75" (1.6mm - 44.5 mm)
Width 0.177" (4.5mm)
Thickness 0.055" (1.4mm)
Minimum Tensile Loop Strength 50 lbf. (222 N)
Strap Length 7.5" (190.5mm)
Quantity Per Case* 5M

*M = 1000

Part # Environmental Requirements Color Operating Temperature Quantity Per Bag*
08318-0 Weather/UV Resistant
 Black
 -40 to 80°C / -40 to 176°F
 100
08415-0 General Purpose
 Natural
 -40 to 85°C / -40 to 185°F
 1M
08443-0 Heat Stabilized
 Black
 -40 to 105°C / -40 to 221°F
 1M
08444-0 Weather/UV Resistant
 Black
 -40 to 80°C / -40 to 176°F
 1M
08484-0 General Purpose
 Natural
 -40 to 85°C / -40 to 185°F
 100
Part # Panduit Cross Reference Thomas and Betts Cross Reference
08318-0 PLC2S-S10-CO TY535MX
08415-0 PLC2S-S10-M TY35M
08443-0 PLC2S-S10-M30
08444-0 PLC2S-S10-MO TY35MX
08484-0 PLC2S-210-C TY535M
