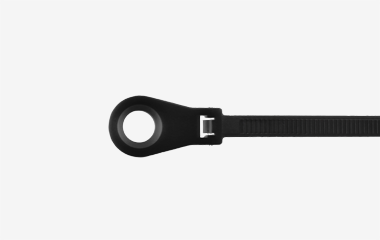

14.5" Screw Mount Ties

Our Screw Mount Ties feature an overall strap length of 14.5" ( 368.3mm) and are ideal for use when precision matters. They keep applications secure and positioned in exact position. Often used when a part is pre-mounted to a surface prior to the final assembly.

Also available with an overall strap length of 7.5"(190.5mm) and 11"(79.4mm)

Attribute
Specifications
Bundle Diameter 0.19" - 3.5" (4.7mm - 88.9mm)
Width 0.25" (6.4mm)
Thickness 0.075" (1.9mm)
Minimum Tensile Loop Strength 120 lbf. (534 N)
Strap Length 14.5" (368.3mm)
Quantity Per Case* 1M

*M = 1000

Part # Environmental Requirements Operating Temperature Color Quantity Per Bag
08426-0 General Purpose
 -40 to 85°C / -40 to 185°F
 Natural 50
08441-0 Heat Stabilized
 -40 to 105°C / -40 to 220°F
 Black
 100
10035-0 General Purpose
 -40 to 85°C / -40 to 185°F
 Natural
 100
10040-0 Weather/UV Resistant -40 to 80°C / -40 to 176°F
 Black 100
Part # Panduit Cross Reference Thomas and Betts Cross Reference
08426-0 PLC4H-S25-L TY537M
08441-0 PLC4H-S25-D30
10035-0 PLC4H-S25-D TY37M
10040-0 PLC4H-S25-DO TY37MX
