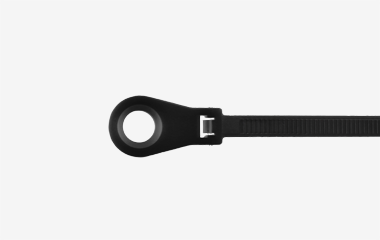

7.5" Screw Mount Cable Ties

Our Screw Mount Ties feature an overall strap length of 7.5" (190.5mm) and are ideal for use when precision matters. They keep applications secure and positioned in exact position. Often used when a part is pre-mounted to a surface prior to the final assembly.

Also available with an overall strap length of 11"(279.4mm) and 14.5"(368.3mm).

Attribute
Specifications
Bundle Diameter0.06"- 1.75" (1.6mm - 44.5 mm)
Width0.177" (4.5mm)
Thickness0.055" (1.4mm)
Minimum Tensile Loop Strength50 lbf. (222 N)
Strap Length7.5" (190.5mm)
Quantity Per Case*5M

*M = 1000

Part #Environmental RequirementsColorOperating TemperatureQuantity Per Bag*
08318-0Weather/UV Resistant
Black
-40 to 80°C / -40 to 176°F
100
08415-0General Purpose
Natural
-40 to 85°C / -40 to 185°F
1M
08443-0Heat Stabilized
Black
-40 to 105°C / -40 to 221°F
1M
08444-0Weather/UV Resistant
Black
-40 to 80°C / -40 to 176°F
1M
08484-0General Purpose
Natural
-40 to 85°C / -40 to 185°F
100
Part #Panduit Cross ReferenceThomas and Betts Cross Reference
08318-0PLC2S-S10-COTY535MX
08415-0PLC2S-S10-MTY35M
08443-0PLC2S-S10-M30
08444-0PLC2S-S10-MOTY35MX
08484-0PLC2S-210-CTY535M
