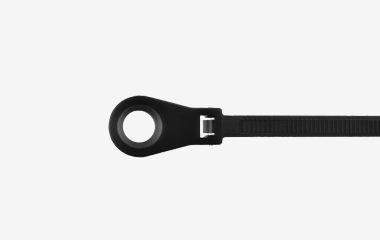

11" Screw Mount Cable Ties

Our Screw Mount Ties feature an overall strap length of 11" (279.4mm) and are ideal for use when precision matters. They keep applications secure and positioned in exact position. Often used when a part is pre-mounted to a surface prior to the final assembly.

Also available in an overall strap length of 7.5"(190.5mm) and 14.5"(368.3mm).

Attribute
Specifications
Bundle Diameter 0.06" - 3.00" (1.6mm - 76.2mm)
Width 0.177" (4.5mm)
Thickness 0.05" (1.2mm)
Minimum Tensile Loop Strength 50 lbf. (222 N)
Strap Length 11" (279.4mm)

*M = 1000

Part # Environmental Requirements Color Operating Temperature Quantity Per Bag* Quantity Per Case*
10350-0 General Purpose
 Natural -40 to 85°C / -40 to 185°F
 1M
 5M
10351-0 Heat Stabilized
 Black
 -40 to 105°C / -40 to 220°F
 1M
 5M
10352-0 Weather/UV Resistant
 Black
 -40 to 80°C / -40 to 176°F
 1M
 5M
10354-0 Weather/UV Resistant
 Black -40 to 80°C / -40 to 176°F
 100 1M
Part # Panduit Cross Reference
10350-0 PLC3S-S10-M
10351-0 PLC3S-S10-M30
10352-0 PLC3S-S10-MO
10354-0 PLC3S-S10-CO
