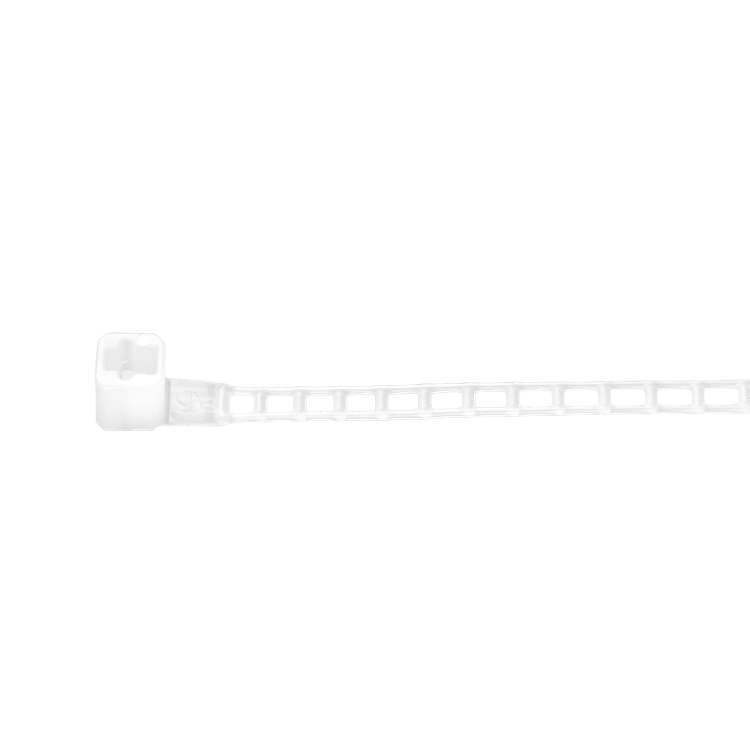

7" Ladder Cable Ties

When compared to its standard equivalent, the Ladder Tie is both friendly to our environment and cost effective. Ladder Ties use 60% less material than solid standard ties and weighs as much as 60% less. They will save on shipping costs, with a case of Ladder Ties being as much as 17% lighter and a bag being as much as 5% lighter than standard ties. They are even manufactured with 40% of previously used nylon 6/6 material. None of this compromises the performance of the Ladder tie either, with it consistently performing higher than the 40lb/18.14Kg tensile strength specification.

The Ladder Tie has been accepted into the automotive, electronics, and industrial industries.

These ties feature an overall strap length of 7"(177.8mm) and they are also available with an overall strap length of 11"(279.4mm)

Attribute
Specifications
Bundle Diameter 0.06"- 1.75" (1.6mm - 44.5 mm)
Width 0.14" (3.6mm)
Thickness 0.04" / 1.0mm
Minimum Tensile Loop Strength 40 lbf. (178 N)

Strap Length 7.0" (177.8mm)

Quantity Per Case* 5M

*M = 1000

Part # Environmental Requirements Color Operating Temperature Quantity Per Bag*
08470-0 General Purpose
Natural -40 to 85°C / -40 to 185°F
1M
08472-0 Weather/UV Resistant
Black -40 to 105°C / -40 to 221°F
1M
08476-0 General Purpose
Natural
-40 to 85°C / -40 to 185°F
100
08478-0 Weather/UV Resistant
Black
-40 to 105°C / -40 to 221°F
100
Part # Panduit Cross Reference Thomas and Betts Cross Reference
08470-0 PLT2I-M/PL2S-M TY25M
08472-0 PLT2I-M30/PLT2S-M30 TYH25M
08476-0 PLT2I-C/PLT2S-C TY525M
08478-0 PLT2I-C30/PLT2S-C30
