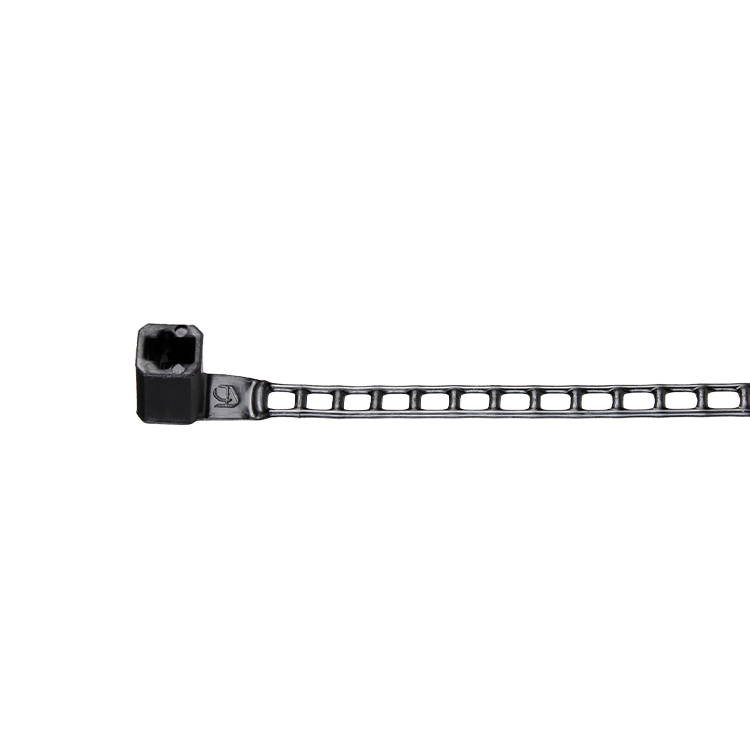

11" Ladder Tie

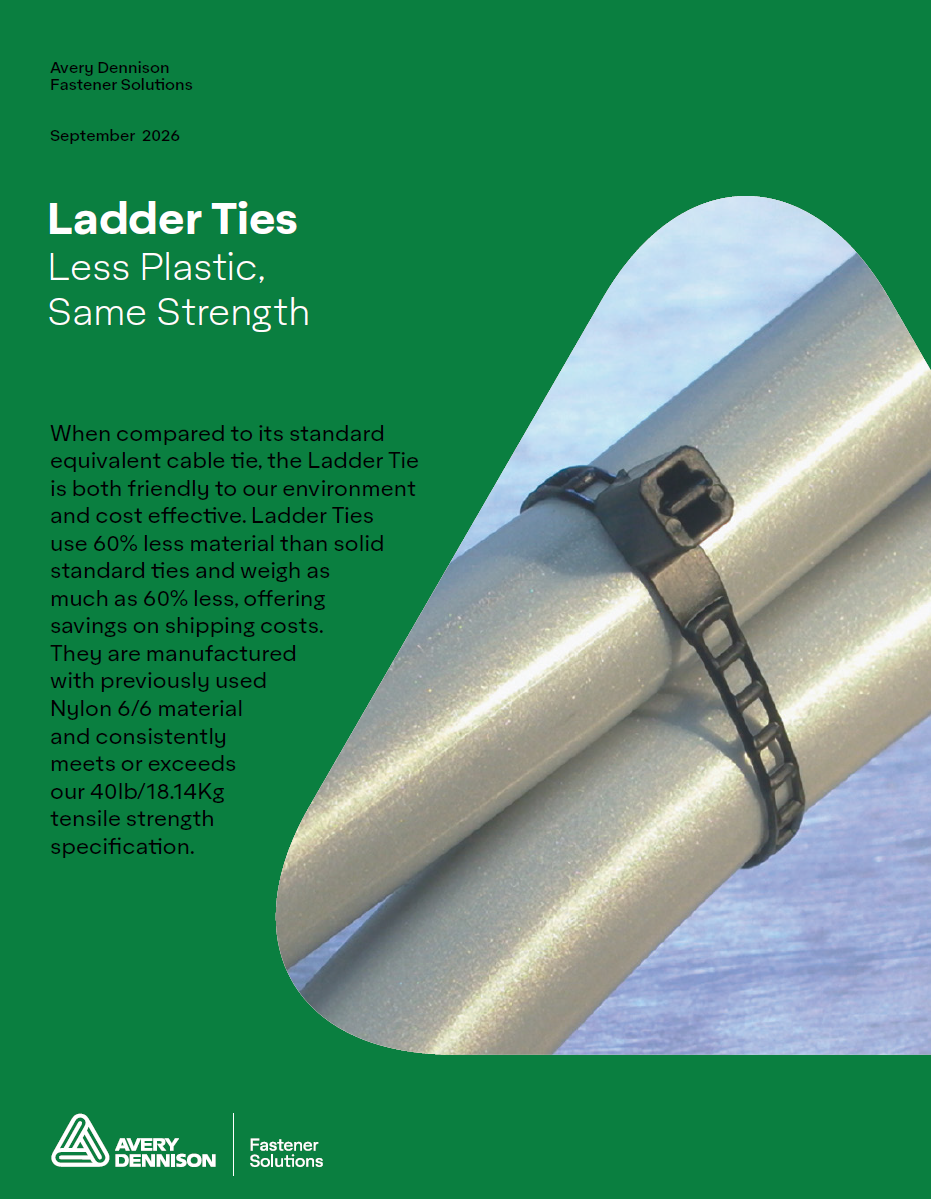

When compared to its standard equivalent, the Ladder Tie is both friendly to our environment and cost effective. Ladder Ties use 60% less material than solid standard ties and weighs as much as 60% less. They will save on shipping costs, with a case of Ladder Ties being as much as 17% lighter and a bag being as much as 5% lighter than standard ties. They are even manufactured with 40% of previously used nylon 6/6 material. None of this compromises the performance of the Ladder tie either, with it consistently performing higher than the 40lb/18.14Kg tensile strength specification.

The Ladder Tie has been accepted into the automotive, electronics, and industrial industries.

These ties feature an overall strap length of 11"(279.4mm) and they also available with an overall strap length of 7" (177.8mm).

Attribute
Specifications
Bundle Diameter 0.06" -3.00" (1.6mm - 76.2mm)
Width 0.14" (3.6mm)
Thickness 0.04" / 1.0mm
Minimum Tensile Loop Strength 40 lbf. (178 N)

Strap Length 11.0" (279.4mm)

Quantity Per Case* 5M

*M = 1000

Part # Environmental Requirements Color Operating Temperature Quantity Per Bag*
08471-0 General Purpose
Natural -40 to 85°C / -40 to 185°F
1M
08473-0 Heat Stabilized
Black -40 to 105°C / -40 to 221°F
1M
08477-0 General Purpose
Natural
-40 to 85°C / -40 to 185°F
100
08479-0 Heat Stabilized
Black
-40 to 105°C / -40 to 221°F
100
Part # Panduit Cross Reference Thomas and Betts Cross Reference
08471-0 PLT3I-M TY26M / TY253M
08473-0 PLT3I-M30
08477-0 PLT3I-C TY5253M / TY526M
08479-0 PLT3I-C30
