System 1000® Fasteners

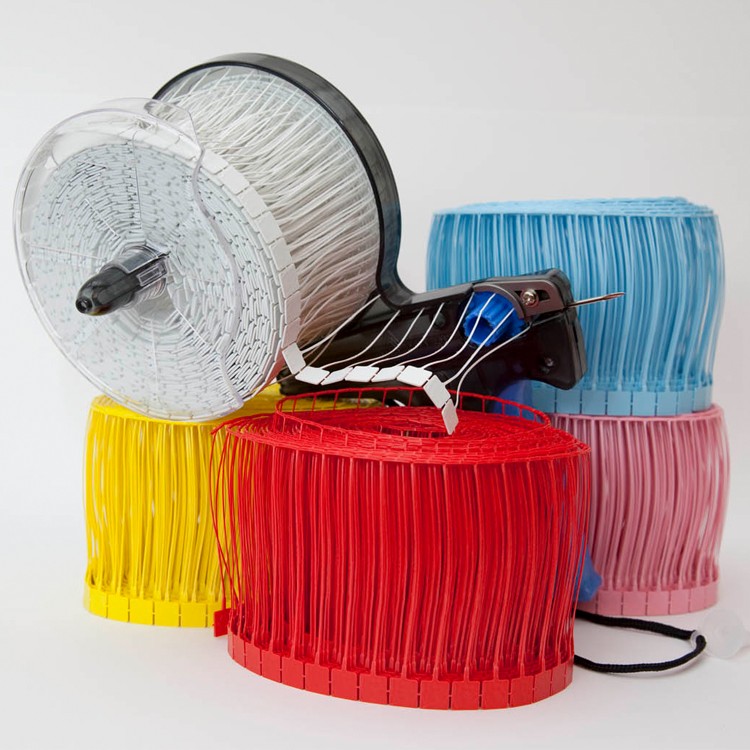

System 1000® Fasteners come in reels of 1,000 fasteners --that's up to twenty times more than standard hand attaching tools, which typically accommodate clips containing 50 or 100 fasteners. This system is an efficient tagging solution because the time spent reloading smaller clips of fasteners is eliminated. These fasteners feature a large paddle to prevent ticket switching and they have no waste strip to discard when the operator is finished.

Attribute
Specifications
Style Paddle
Loading Type Reel
Per Reel* 1M or 834
Package Quantity* 5M
Case Quantity* 50M

*M = 1000


Material
Style
Class
Part #
Color		 Nominal Filament
Length
 Minimum Tensile
Strength
Per Reel
Pkg. Qty
Case Qty
Polypropylene Paddle Standard 10332-0 Natural .43" (11mm) 4.5 lbf (2 Kgf) 1,000 5,000 50,000
Polypropylene Paddle Standard 10316-0 Blue .87" (22mm) 4.5 lbf (2 Kgf) 1,000 5,000 50,000
Polypropylene Paddle Standard 10317-0 Green .87" (22mm) 4.5 lbf (2 Kgf) 1,000 5,000 50,000
Polypropylene Paddle Standard 08284-0 Natural .87" (22mm) 4.5 lbf (2 Kgf) 1,000 5,000 50,000
Polypropylene Paddle Standard 10315-0 Red .87" (22mm) 4.5 lbf (2 Kgf) 1,000 5,000 50,000
Polypropylene Paddle Standard 10318-0 Yellow .87" (22mm) 4.5 lbf (2 Kgf) 1,000 5,000 50,000
Polypropylene Paddle Standard 10311-0 Natural 1.25" (32mm) 4.5 lbf (2 Kgf) 1,000 5,000 50,000
Polypropylene Paddle Standard 10334-0 Natural 1.5" (38mm) 4.5 lbf (2 Kgf) 1,000 5,000 50,000
Polypropylene Paddle Standard 08285-0 Natural 2" (52mm) 4.5 lbf (2 Kgf) 1,000 5,000 50,000
Nylon Paddle Standard 11270-0 Natural 0.43" (11mm) 7 lbf (3.2 Kgf) 1,000 5,000 50,000
Nylon Paddle Standard 10699-0 Natural 0.59" (15mm) 7 lbf (3.2 Kgf) 1,000 5,000 50,000
Nylon Paddle Standard 11271-0 Natural 0.75" (19mm) 7 lbf (3.2 Kgf) 1,000 5,000 50,000
Nylon Paddle Standard 10698-0 Natural 0.86" (22mm) 7 lbf (3.2 Kgf) 1,000 5,000 50,000
Nylon Paddle Standard 10418-0 Natural 1.0" (26mm) 7 lbf (3.2 Kgf) 1,000 5,000 50,000
Nylon Paddle Standard 11272-0 Natural 1.25" (32mm) 7 lbf (3.2 Kgf) 1,000 5,000 50,000
Nylon Paddle Standard 10415-0 Natural 1.5" (38mm) 7 lbf (3.2 Kgf) 1,000 5,000 50,000
Nylon Paddle Standard 11273-0 Natural 1.75" (44mm) 7 lbf (3.2 Kgf) 1,000 5,000 50,000
Nylon Paddle Standard 11005-0 Natural 2.0" (52mm) 7 lbf (3.2 Kgf) 1,000 5,000 50,000
Nylon Paddle Standard 11260-0 Natural 2.25" (57mm) 7 lbf (3.2 Kgf) 1,000 5,000 50,000
Nylon Paddle Standard 11261-0 Natural 2.55" (65mm) 7 lbf (3.2 Kgf) 1,000 5,000 50,000
Nylon Paddle Standard 11262-0 Natural 2.75" (70mm) 7 lbf (3.2 Kgf) 1,000 5,000 50,000
Nylon Paddle Standard 11263-0 Natural 3.0" (76mm) 7 lbf (3.2 Kgf) 1,000 5,000 50,000
rPET 95%PCW Paddle Standard 17016-0 Black/Black 1.6” (41mm) 4.0 lbf (1.8 Kgf) 834 5,000 50,000
rPET 95%PCW Paddle Standard 17017-0 White/White 1.6” (41mm) 4.0 lbf (1.8 Kgf) 834 5,000 50,000
rPET 95%PCW Paddle Standard 17001-0 White/White 2.6” (65mm) 4.0 lbf (1.8 Kgf) 834 5,000 50,000
rPET 95%PCW Paddle Standard 17002-0 Yellow/107C 2.6” (65mm) 4.0 lbf (1.8 Kgf) 834 5,000 50,000
rPET 95%PCW Paddle Standard 17003-0 Orange/172C 2.6” (65mm) 4.0 lbf (1.8 Kgf) 834 5,000 50,000
rPET 95%PCW Paddle Standard 17004-0 Pink/210C 2.6” (65mm) 4.0 lbf (1.8 Kgf) 834 5,000 50,000
rPET 95%PCW Paddle Standard 17005-0 Red/186C 2.6” (65mm) 4.0 lbf (1.8 Kgf) 834 5,000 50,000
rPET 95%PCW Paddle Standard 17006-0 LT Green/346C 2.6” (65mm) 4.0 lbf (1.8 Kgf) 834 5,000 50,000
rPET 95%PCW Paddle Standard 17007-0 Green/347C 2.6” (65mm) 4.0 lbf (1.8 Kgf) 834 5,000 50,000
rPET 95%PCW Paddle Standard 17008-0 LT Blue/291C 2.6” (65mm) 4.0 lbf (1.8 Kgf) 834 5,000 50,000
rPET 95%PCW Paddle Standard 17009-0 DK Blue/286C 2.6” (65mm) 4.0 lbf (1.8 Kgf) 834 5,000 50,000
rPET 95%PCW Paddle Standard 17010-0 Brown/4655C 2.6” (65mm) 4.0 lbf (1.8 Kgf) 834 5,000 50,000
rPET 95%PCW Paddle Fine Fabric 17011-0 Gray/429C 2.6” (65mm) 4.0 lbf (1.8 Kgf) 834 5,000 50,000
rPET 95%PCW Paddle Fine Fabric 17012-0 Black/Black 2.6” (65mm) 4.0 lbf (1.8 Kgf) 834 5,000 50,000
rPET 95%PCW Paddle Fine Fabric 17013-0 Natural 2.6” (65mm) 4.0 lbf (1.8 Kgf) 834 5,000 50,000
rPA 30%PCW Paddle Standard 17180-0 Gray 0.43" (11mm) 7 lbf / 3.2 Kgf 1000 5000 50000
rPA 30%PCW Paddle Standard 17181-0 Gray 0.50" (13mm) 7 lbf / 3.2 Kgf 1000 5000 50000
rPA 30%PCW Paddle Standard 17182-0 Gray 0.76" (19mm) 7 lbf / 3.2 Kgf 1000 5000 50000
rPA 30%PCW Paddle Standard 17183-0 Gray 1.02" (26mm) 7 lbf / 3.2 Kgf 1000 5000 50000
rPA 30%PCW Paddle Standard 17184-0 Gray 1.25" (32mm) 7 lbf / 3.2 Kgf 1000 5000 50000
rPA 30%PCW Paddle Standard 17185-0 Gray 1.65" (42mm) 7 lbf / 3.2 Kgf 1000 5000 50000
rPA 30%PCW Paddle Standard 17186-0 Gray 1.73" (44mm) 7 lbf / 3.2 Kgf 1000 5000 50000
rPA 30%PCW Paddle Standard 17187-0 Gray 2.02" (51mm) 7 lbf / 3.2 Kgf 1000 5000 50000

Compatible Tools Include:

System 1000® Industrial Pneumatic Tool (SPU5P)

System 1000® Hand Tool (10000-4)

Industrial System 1000® Module (SPU5M)
