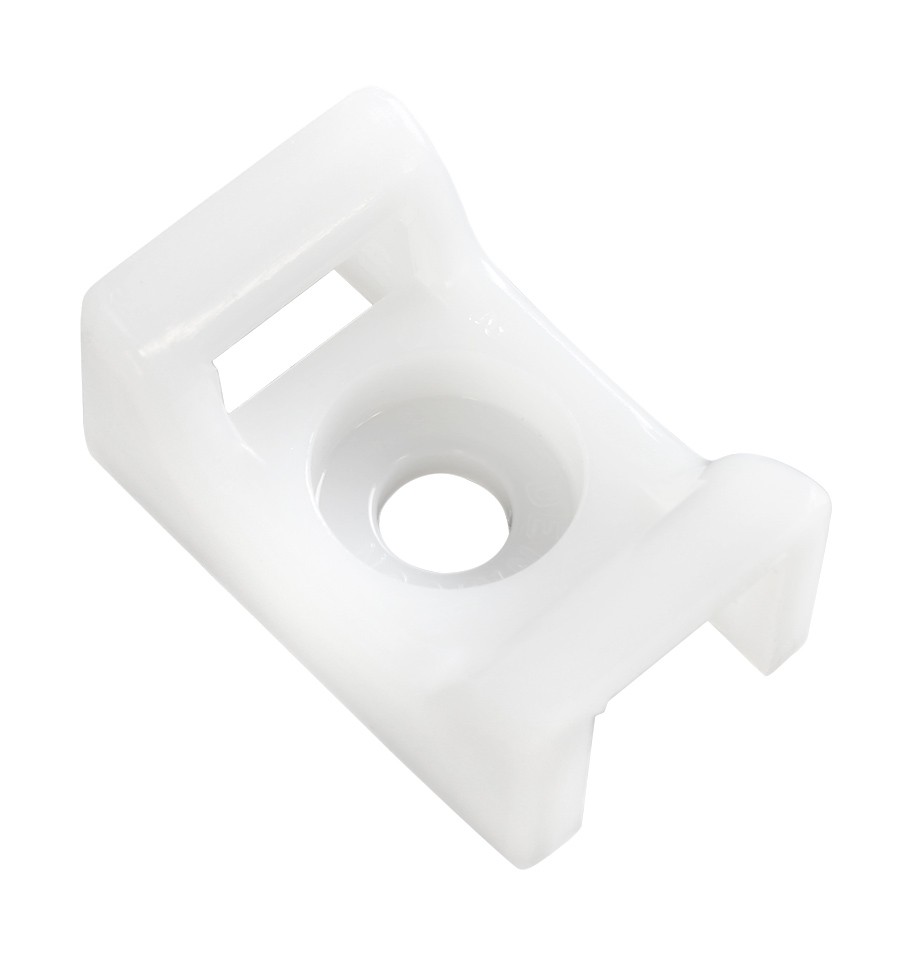

Cable Tie Screw Cradle Mount

The Screw Cradle Mount design provides support and is secured with a screw mounted into a recessed screw hole, enabling cable ties to pass over the head of the screws. Screw Cradle Mounts are available in #4, #8, #10 and 1/4".

Attribute
Specifications
Color Natural
Quantity Per Bag 100

*M = 1000

Part # Screw Size Width Thickness Length Quantity Per Case*
10044-0 #4  0.34" (8.6mm)
 0.23" (5.8mm)
 0.54" (13.7mm)
 5M
10045-0 #8 0.52" (13.2mm)
 0.33" (8.4mm)
 0.72" (18.3mm)
 5M
10046-0 #10 0.64" (16.3mm)
 0.42" (10.7mm)
 1.04" (26.4mm)
 1M
10079-0 0.25" (6.35mm) 0.64" (16.3mm)
 0.42" (10.7mm)
 1.04" (26.4mm)
 1M
Part # Panduit Cross Reference Thomas and Betts Cross Reference
10044-0 TM1S4-C TC140
10045-0 TM3S8-C
10046-0 TM3S10-C TC5142
10079-0 TM3S25-C
