Cable Tie Adhesive Mount

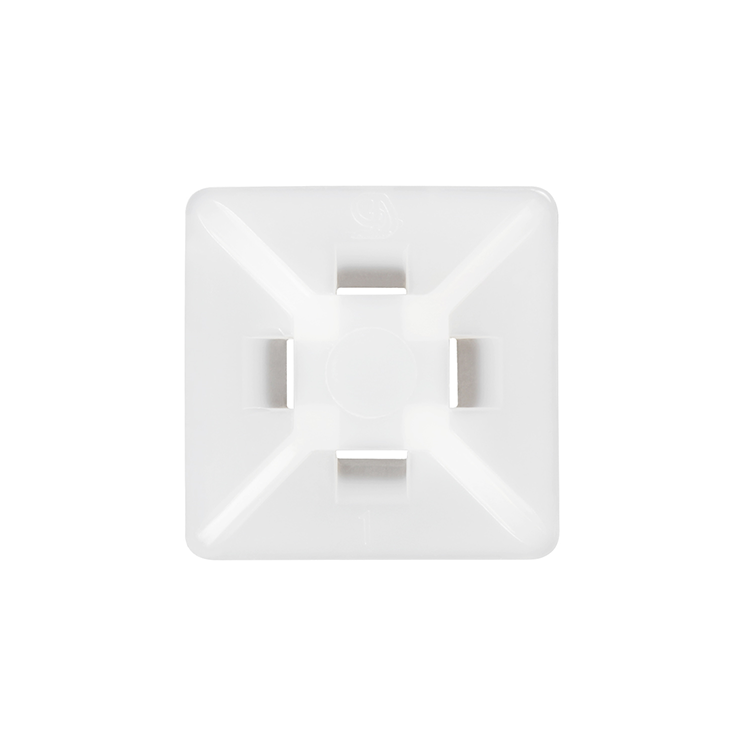

This is a cable tie adhesive mount. Adhesive mounts are able to conform to minor surface irregularities and are available in both rubber and acrylic. Rubber is quick setting and has a modern strength, and acrylic takes longer to set and is stronger. Adhesive mounts have four-way positioning, making it so cable ties can easily slide into the mounts from any 4 sides, which speeds up the assembly process.

Attribute
Specifications
Width 0.835" (21.2mm)
Color Natural
Quantity Per Bag 100
Quantity Per Case* 5M

*M = 1000

Part # Material Compatible Ties Length Thickness
08461-2 Acrylic  miniature & intermediate 0.84" (21.2mm)
 0.19" (4.8mm)
08462-0 Acrylic miniature & intermediate 1.09" (27.7mm)
 0.25" (6.4mm)
10029-0 Rubber based intermediate & standard 0.84" (21.2mm)
 0.19" (4.8mm)
10030-0 Rubber based  intermediate & standard 1.09" (27.7mm)
 0.25" (6.4mm)
Part # Panduit Cross Reference Thomas and Betts Cross Reference
08461-2
08462-0 ABM2S-AT-C TC345A
10029-0 ABMM-A-C TC344A
10030-0 ABM2S-A-C TC345A
