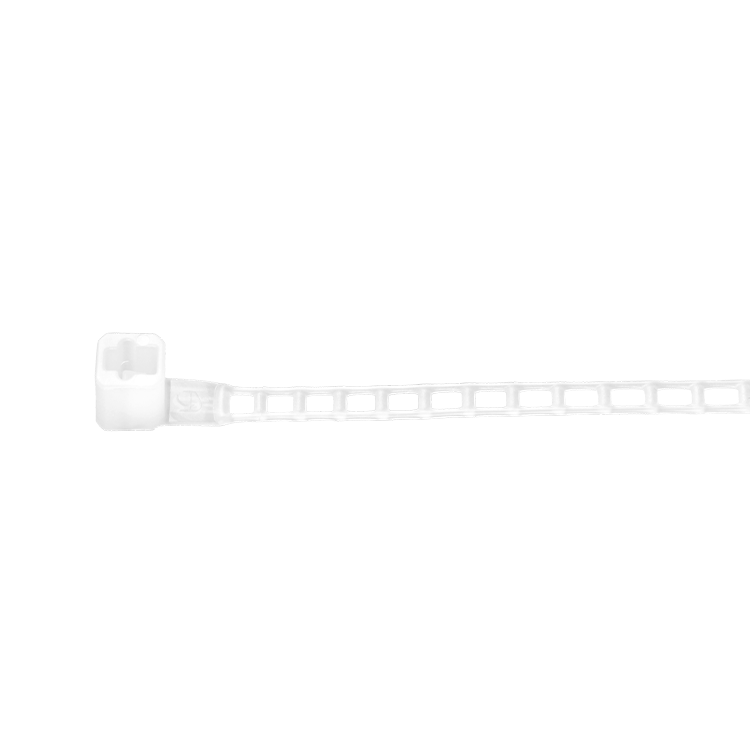

7" Ladder Cable Ties

When compared to its standard equivalent, the Ladder Tie is both friendly to our environment and cost effective. Ladder Ties use 60% less material than solid standard ties and weighs as much as 60% less. They will save on shipping costs, with a case of Ladder Ties being as much as 17% lighter and a bag being as much as 5% lighter than standard ties. They are even manufactured with 40% of previously used nylon 6/6 material. None of this compromises the performance of the Ladder tie either, with it consistently performing higher than the 40lb/18.14Kg tensile strength specification.

The PIR (Post-Industrial Recycled) Nylon 66 Ladder Tie is a breakthrough sustainable fastening solution designed to help customers achieve their Scope 3 carbon reduction, ESG targets, and state-mandated Extended Producer Responsibility (EPR) regulations like California SB 54 without sacrificing mechanical or thermal performance.

The Ladder Tie has been accepted into the automotive, electronics, and industrial industries.

These ties feature an overall strap length of 7"(177.8mm) and they are also available with an overall strap length of 11"(279.4mm)

Attribute
Specifications
Bundle Diameter0.06"- 1.75" (1.6mm - 44.5 mm)
Width0.14" (3.6mm)
Thickness0.04" / 1.0mm
Minimum Tensile Loop Strength40 lbf. (178 N)

Strap Length7.0" (177.8mm)

Quantity Per Case*5M

*M = 1000

Part #Environmental RequirementsColorOperating TemperatureQuantity Per Bag*
08470-0General Purpose
Natural-40 to 85°C / -40 to 185°F
1M
08472-0Heat StabilizedBlack-40 to 105°C / -40 to 221°F
1M
08476-0General Purpose
Natural
-40 to 85°C / -40 to 185°F
100
08478-0Heat StabilizedBlack
-40 to 105°C / -40 to 221°F
100
08470-PIRGeneral Purpose, 100% PIR PA66Natural-40 to 85°C / -40 to 185°F1M
08472-PIRHeat Stabilized, 100% PIR PA66Black-40 to 105°C / -40 to 221°F1M
Part #Panduit Cross ReferenceThomas and Betts Cross Reference
08470-0PLT2I-M/PL2S-MTY25M
08472-0PLT2I-M30/PLT2S-M30TYH25M
08476-0PLT2I-C/PLT2S-CTY525M
08478-0PLT2I-C30/PLT2S-C30
