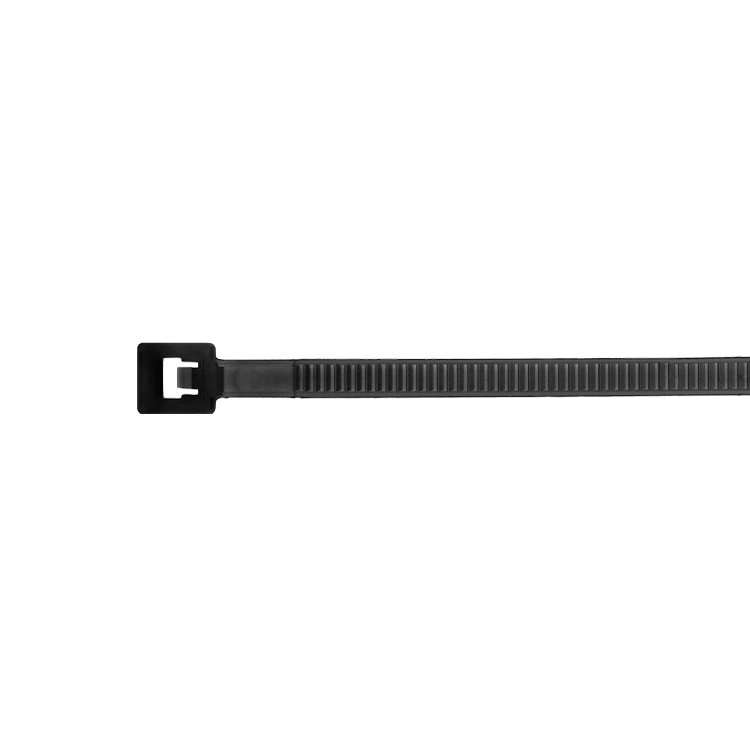

4" Miniature Cable Ties

Our Miniature Cable Ties feature an overall strap length of 4"( 101.6mm) and a minimum tensile loop strength of 18 lbf (80 N), making them a great solution for small and lightweight bundling.

These ties are available as weather resistant, which is perfect for outdoor applications with greater resistant to ultraviolet light. There is also a heat stabilized option which is perfect for use in high temperature applications.

They are available in a range of colors.

Attribute
Specifications
Bundle Diameter 0.06" - 0.88" (1.6mm - 22.2mm)
Width .095" (2.4mm)
Thickness
 .041" (1.0mm)
Minimum Tensile Loop Strength 18 lbf. (80 N)
Strap Length 4.0" (101.6mm)

*M = 1000

Part # Environmental Requirements Operating Temperature  Color Quantity Per Bag*
08404-0 Heat Stabilized -40 to 105°C / -40 to 221°F
 Black 1M
08432-0 General Purpose -40 to 85°C / -40 to 185°F
 Natural 1M
08434-0 General Purpose -40 to 85°C / -40 to 185°F
 Natural 100
08433-0 Weather/UV Resistant -20 to 70°C / -68 to 158°F
 Black 1M
08435-0 Weather/UV Resistant -20 to 70°C / -68 to 158°F
 Black 100
08508-0 General Purpose -40 to 85°C / -40 to 185°F
 Red 1M
08582-0 General Purpose
 -40 to 85°C / -40 to 185°F
 Orange 1M
08583-0 General Purpose
 -40 to 85°C / -40 to 185°F
 Yellow 1M
08584-0 General Purpose
 -40 to 85°C / -40 to 185°F
 Green 1M
08587-0 General Purpose
 -40 to 85°C / -40 to 185°F
 Blue 1M
Part # Military Specification Panduit Cross Reference Thomas and Betts Cross Reference
08404-0   PLT1M-M31

08432-0 MS-3367-4-9
 PLT1M-M
 TY23M
08433-0 MS-3367-4-9
 PLT1M-MO
 TY23MX
08434-0 MS-3367-4-0
 PLT1M-C
 TY523M
08435-0 MS-3367-4-9
 PTL1M-CO
 TY523MX
08508-0 MS-3367-4-2
 PLT1M-M2

08582-0 MS-3367-4-3
 PLT1M-M3

08583-0 MS-3367-4-4
 PLT1M-M4

08584-0 MS-3367-4-5
 PLT1M-M5

08587-0 MS-3367-4-6
 PLT1M-M6
