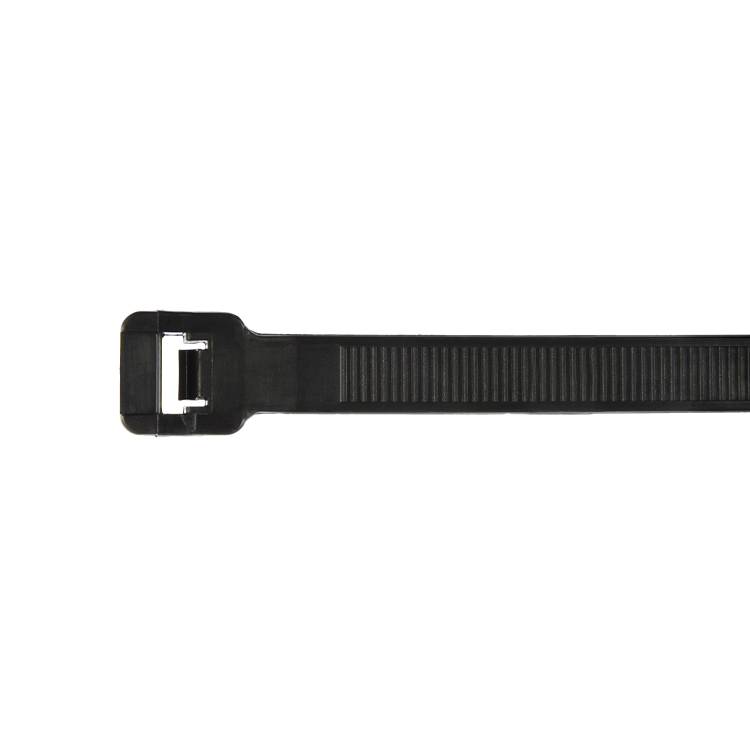

24"Heavy Duty Cable Ties

These Heavy Duty Cable Ties feature an overall strap length of 24" (609.6mm). They are designed for use in heavy applications and large bundles having a minimum tensile loop strength of 120lbs (54.43Kg).

These ties are available as weather resistant, which is perfect for outdoor applications with greater resistant to ultraviolet lights. There is also a heat stabilized option which is perfect for use in high temperature applications.

Also available with an overall strap length of 21"(533.4mm) and 28"(711.2mm).

Attribute
Specifications
Bundle Diameter 0.25"-7.00" (6.35mm - 177.8mm)
Width 0.303" / 7.7mm
Thickness 0.075" / 1.9mm
Minimum Tensile Loop Strength 120 lbf. (534 N)

Strap Length 24.0" (609.6mm)

Quantity Per Bag 100
Quantity Per Case* 1M

*M = 1000

Part # Environmental Requirements Color Operating Temperature
10612-0 General Purpose
 Natural -40 to 85°C / -40 to 185°F
10613-0 Weather/UV Resistant
 Black -40 to 105°C / -40 to 221°F
10614-0 Weather/UV Resistant
 Black -40 to 80°C / -40 to 176°F
Part # Military Specifications Panduit Cross Reference Thomas and Betts Cross Reference
10612-0 MS-3367-3-9 PLT7LH-L TY5277M
10613-0   PLT7LH-L30
10614-0 MS-3367-3-0 PLT7LH-LO TY5277MX
