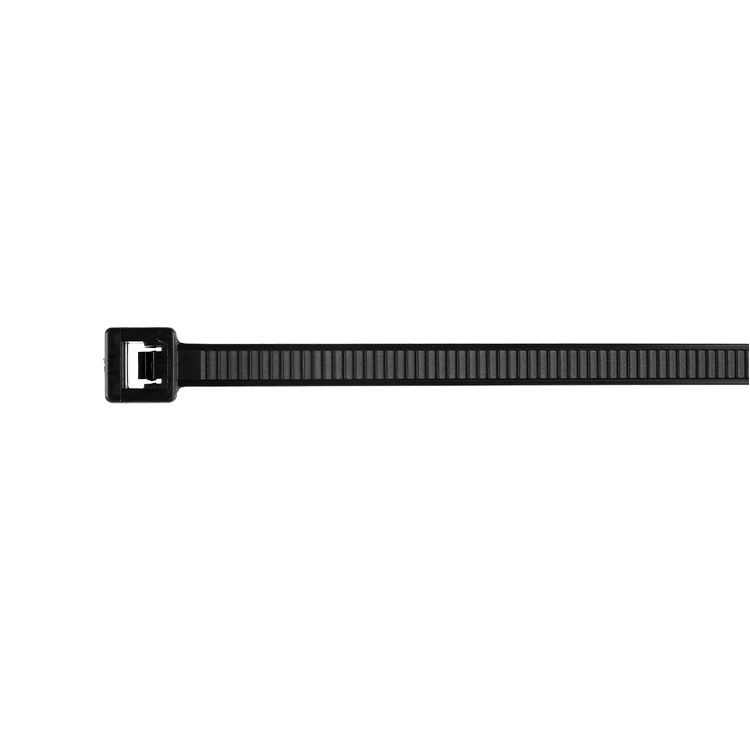

11" Standard Ties

These Standard Cable Ties feature an overall strap length of 11" ( 279.4mm). They are designed for use in heavier applications, having a minimum tensile loop strength of 50lbs (22.68Kg).

These ties are available as weather resistant, which is perfect for outdoor applications with greater resistant to ultraviolet lights. There is also a heat stabilized option which is perfect for use in high temperature applications.

Also available with an overall strap length of 7.5"(190.5mm) and 15"(381mm).

Attribute
Specifications
Bundle Diameter 0.06" -3.00" (1.6mm - 76.2mm)
Width 0.177" (4.5mm)
Thickness .053" (1.3mm)
Minimum Tensile Loop Strength 50 lbf. (222 N)

Strap Length 11.0" (279.4mm)

Quantity Per Case* 5M

*M = 1000

Part # Environmental Requirements Color Operating Temperature Quantity Per Bag*
08056-0 Heat Stabilized
 Natural -40 to 85°C / -40 to 185°F
 1M
08286-0 Weather/UV Resistant
 Black -40 to 80°C / -40 to 176°F
 1M
08600-0 General Purpose
 Black -40 to 105°C / -40 to 221°F
 1M
08859-0 General Purpose
 Natural -40 to 85°C / -40 to 185°F
 100
08930-0 Weather/UV Resistant
 Black -40 to 80°C / -40 to 176°F
 100
Part # Military Specifications Panduit Cross Reference Thomas and Betts Cross Reference
08056-0 MS-3367-7-0 PLT3S-M30
08286-0 MS-3367-7-0 PLT3S-MO TY253MX
08600-0 MS-3367-7-9 PLT3S-M TY26M/TY253M
08859-0 MS-3367-7-9 PLT3S-C TY5253M
08930-0 MS-3367-7-0 PLT3S-CO TY5253MX
