20318-0

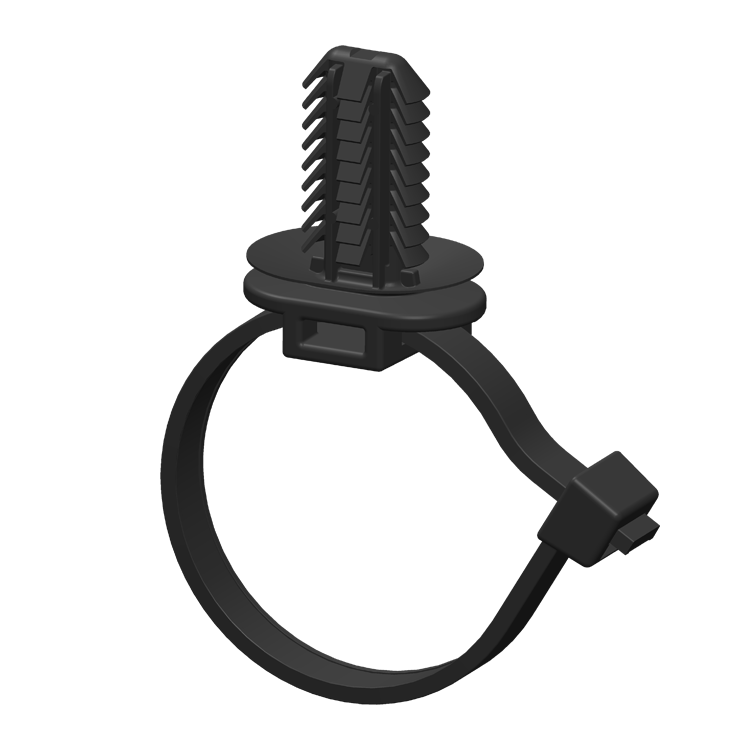

OVAL FIR TREE CLIP, 2 PIECE, LONG, STD IMHS

This 2-piece fastener allows for multiple orientation configurations. It also features an extended mating head to accommodate thicker panels. The standard 7.5" tie strap can be mounted in two different directions depending on the bundle orientation. This can be used on multiple hole configurations from 6.2mm-7mm to 12mm-13mm. This versatile clip can be used to replace multiple oval fir tree ties to reduce the number of fastener SKUs required for an automotive platform. This unique fastener also provides the anti-rotation benefits of an oval and the ergonomic benefits of a LIFT™ tie. Because the strap is separated from the oval fir tree piece, a variety of different strap lengths could also be used.

Attribute
Specifications
Application Punched Hole
Fastener Type Fir Tree
Mating Feature Oval / Rectangle Hole
Mount Size Oval Slotted Hole Sizes:
6.2 x 12.2mm
6.5 x 12.5mm
6.5 x 13.0mm
7.0 x 12.0mm
Bundle Diameter 0.06 - 1.75"  (1.59 - 44.5 mm)
Maximum Panel Thickness ≤ 16.0 mm
Operating Temperature -40 to 125°C / -40 to 257°F
Material
 Nylon 6/6, Impact Modified, Heat Stable
Resin PA66 IMHS
Color Black
Max. Insertion Force
 10 lbf (44.5 N)
Min. Retention Force 40 lbf (178 N)
Min. Loop Tensile Strength
 50 lbf (222 N)
Strap Length 7.5" (190.5 mm)
Strap Width .177" (4.5 mm)
Strap Thickness .050" (1.27 mm)
Qty/Bag
 1000
