OVAL FIR TREE, 2 PIECE LONG, HD IMHS

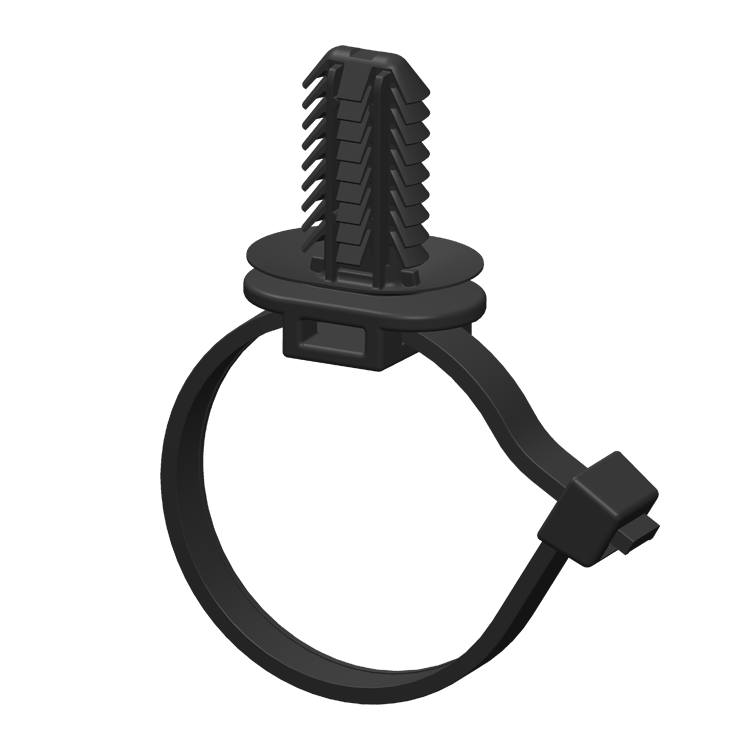

This 2-piece fastener allows for multiple orientation configurations. It also features an extended mating head to accommodate thicker panels. The heavy-duty 14.5" tie strap can be mounted in two different directions depending on the bundle orientation. The oval fir tree piece can fit panels up to 7mm thick and be used on multiple hole configurations from 6.2mm-7mm to 12mm-13mm. This versatile clip can be used to replace multiple oval fir tree fasteners to reduce the number of fastener SKUs required for an automotive platform. This unique fastener also provides the anti-rotation benefits of an oval as well as the ergonomic benefits of a LIFT™ tie. Because the strap is separated from the oval fir tree piece, a variety of different strap lengths could also be used.

Attribute
Specifications
Application Punched Hole
Fastener Type Fir Tree
Mating Feature Oval / Rectangle Hole
Mount Size Oval Slotted Hole Sizes:
6.2 x 12.2mm
6.5 x 12.5mm
6.5 x 13.0mm
7.0 x 12.0mm
Bundle Diameter 0.18 - 4.00" (4.7 - 101.6 mm)
Maximum Panel Thickness ≤ 16.0 mm
Operating Temperature -40 to 125°C / -40 to 257°F
Material
Nylon 6/6, Impact Modified, Heat Stabilized
Resin PA66 IMHS
Color Black
Max. Insertion Force
10 lbf (44.5 N)
Min. Retention Force 40 lbf (178 N)
Min. Loop Tensile Strength
100 lbf (445 N)
Strap Length 14.5" (368.3 mm)
Strap Width .251" (6.38 mm)
Strap Thickness .074" (1.88 mm)
Qty/Bag
100
