20115-HHBN

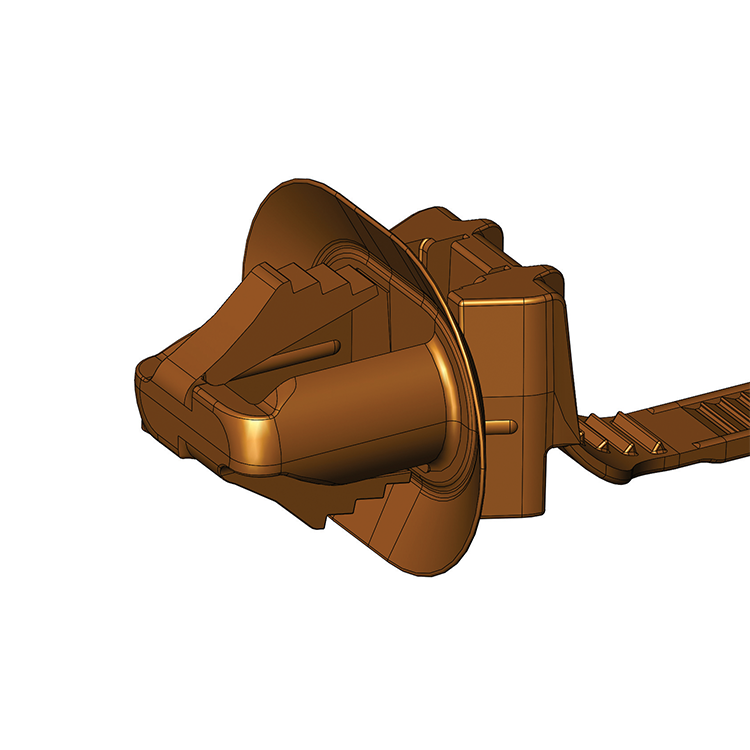

5.5"DIRECTIONAL SLOT HIGH HEAT

If you are looking for positive engagement feedback when installing electrical or fluid systems, Avery Dennison offers a family of arrow style fasteners. There are solutions for both round and oval/rectangular holes ranging from 5mm to 9.5mm round holes and 6.2mm-7.0mm x 12mm+. Mating panel thicknesses can be from 0.6 to 10mm. Avery Dennison's designs give engineers the ability to use one part number for a variety of panel thicknesses.

Avery Dennison's Directional Slot Ties securely attach to the long sides of your application’s slotted hole, instead of to the ends. This mounting feature accommodates extended (7mm x 12mm minimum length) oval and rectangular slotted holes for anit-rotation and harness guidance purposes. The highly versatile tie permits left-to-right adjustments that can compensate for harness alignment and enhance productivity during installation.  It is also high heat with an operating temperature of -40 to 150°C / -40 to 302°F.

Recent updates to the design of our directional slot tie allow it to meet both European and US/Japanese hole specifications

Attribute
Specifications
Application Punched Hole
Fastener Type Arrow
Mating Feature Oval / Rectangle Hole
Mount Size 7 x 12+mm
Bundle Diameter 0.06 - 1.50" (1.6 - 38.1 mm)
Maximum Panel Thickness ≤ 3.6 mm
Operating Temperature -40 to 150°C / -40 to 302°F
Resin PA66 IMHH
Color Brown
Insertion Force (lbf)

Max.     - 10

Typical  - 6

Retention Force (lbf)

Min.      - 30

Typical  - 45

Min. Loop Tensile Strength
50 lbf. (222 N)
