20098-HHBN

7.5"LOW INS.FIR TREE

Our range of fir tree ties provide a variety of solutions for automotive fastening applications. The fir tree features allow manufacturers to mount and secure wire bundles to punched or threaded holes, and the disk portion provides adequate tension between the panels to prevent noise and vibration. To accelerate installation speeds, the fluted edges lock into panel holes the same way a pawl locks into strap teeth. It is also high heat with an operating temperature of -40 to 150°C / -40 to 302°F.

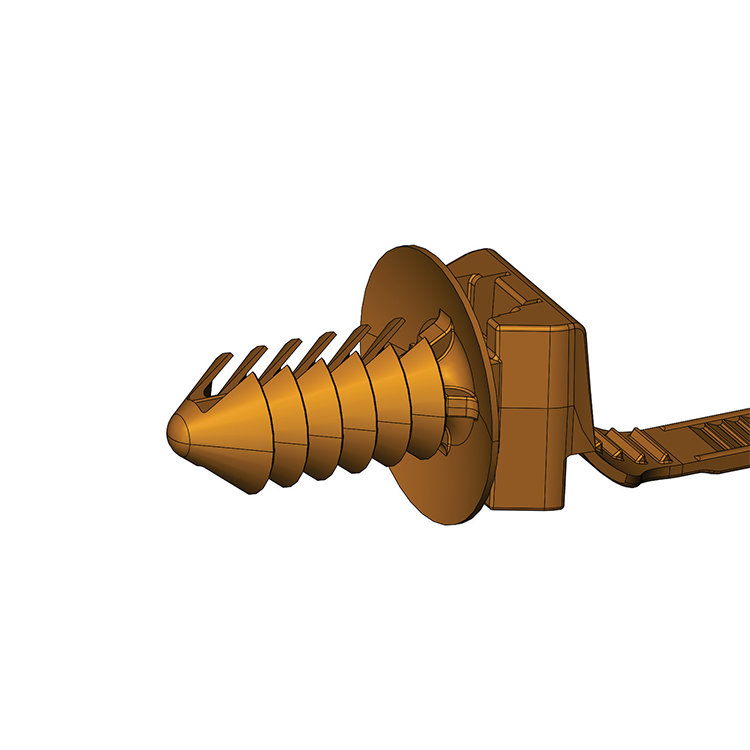

This is a Low Insertion Fir Tree, or LIFT™ cable tie fastener. It offers an ergonomically advanced solution that provides a low insertion force while maintaining high retention characteristics. The unique LIFT™ flute geometry is designed specifically to meet automotive wire harnessing requirements. LIFT™ cable ties help minimize line worker fatigue. By combining our low insertion fir tree technology with high extraction force characteristics, LIFT™ ties outperform alternative fir tree and arrow style fasteners.

Attribute
Specifications
Application

Punched Hole

Threaded Hole

Fastener Type Straight Fir Tree
Mating Feature Round / Hex Hole
Mount Size Ø 6.35 - 6.85 mm
Bundle Diameter 0.06 - 1.75" (1.6 - 44.5 mm)
Maximum Panel Thickness ≤ 7.0 mm
Operating Temperature -40 to 150°C / -40 to 302°F
Resin PA66 IMHH
Color Brown
Insertion Force (lbf)

Max.    -  10

Typical -  7

Retention Force (lbf)

Min.     -  40

Typical -  72

Min. Loop Tensile Strength
50 lbf. (222 N)
