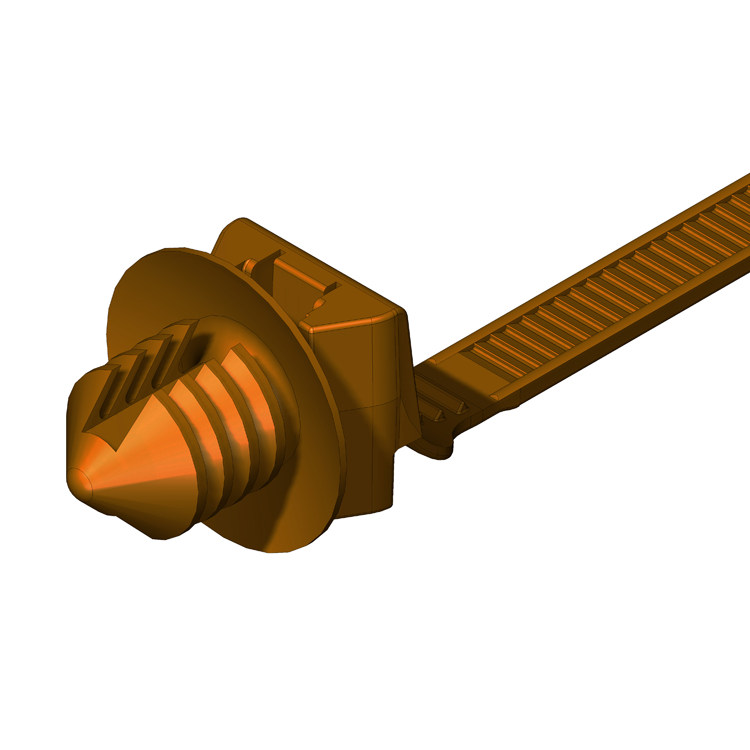

20094-HHBN

8MM CURVED TIE HIGH HEAT BROWN

Our range of fir tree ties provide a variety of solutions for automotive fastening applications. The fir tree features allow manufacturers to mount and secure wire bundles to punched or threaded holes, and the disk portion provides adequate tension between the panels to prevent noise and vibration. To accelerate installation speeds, the fluted edges lock into panel holes the same way a pawl locks into strap teeth. We have a variety of parts to meet hole diameters from Ø6.3mm to 11.5mm in panel thicknesses from 0.6mm to 8.5mm. Some fir tree parts are also designed specially for threaded holes from M6-M10.


Attribute
Specifications
Application Punched Hole
Fastener Type Straight Fir Tree
Mating Feature Round / Hex Hole
Mount Size Ø 7.75 - 8.25 mm / M10
Bundle Diameter 0.06 - 1.75" (1.6 - 44.5 mm)
Maximum Panel Thickness ≤ 7.0 mm
Operating Temperature -40 to 150°C / -40 to 302°F
Resin PA66 IMHH
Color Brown
Insertion Force (lbf)

Max.    -  15

Typical  - 10

Retention Force (lbf)

Min.     -   50

Typical  -  82

Min. Loop Tensile Strength
50 lbf. (222 N)
