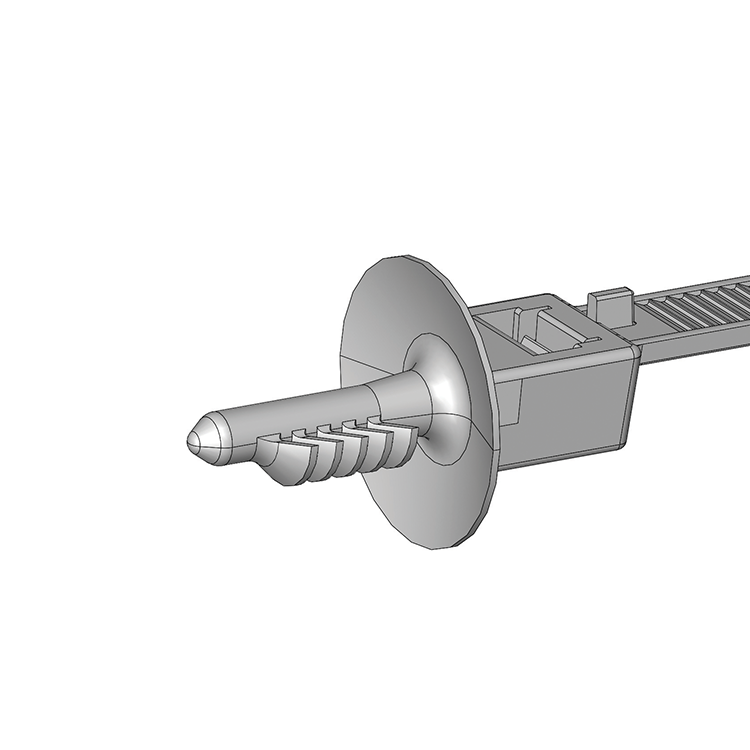

20079-0

FIR TREE-1/2,SM,GHS

Our range of fir tree ties provide a variety of solutions for automotive fastening applications. The fir tree features allow manufacturers to mount and secure wire bundles to punched or threaded holes, and the disk portion provides adequate tension between the panels to prevent noise and vibration.

To accelerate installation speeds, the fluted edges lock into panel holes the same way a pawl locks into strap teeth.

We have a variety of parts to meet hole diameters from Ø6.3mm to 11.5mm in panel thicknesses from 0.6mm to 8.5mm. Some fir tree parts are also designed specifically for threaded holes from M6-M10.


Attribute
Specifications
Application Threaded Hole
Fastener Type Straight Fir Tree
Mating Feature Threaded Hole
Mount Size M6
Bundle Diameter 0.06 - 1.75" (1.6 - 44.5 mm)
Maximum Panel Thickness ≤ 6.0 mm
Operating Temperature -40 to 125°C / -40 to 257°F
Resin PA66 IMHS
Color Gray
Insertion Force (lbf)

Max.    7

Typical 6

Retention Force (lbf)

Min.     25

Typical 38

Min. Loop Tensile Strength 50 lbf. (222 N)
