20073-0

9.5mm OFFSET,STD,GHS

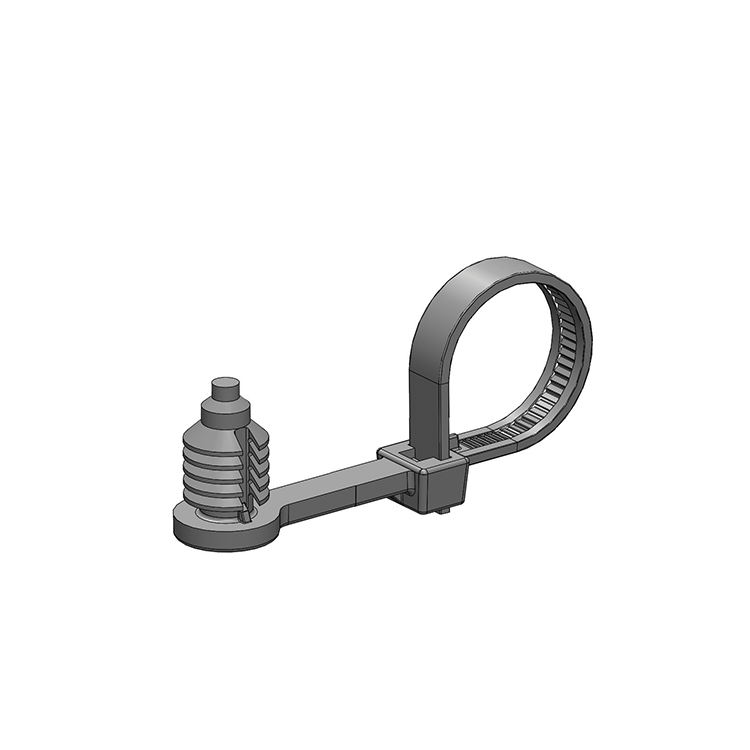

Building on our straight fir tree family of products, we offer a variety of offset fir trees. These allow users to guide harnesses, tubes and hoses away from the mating hole when there is interference from other components or harnesses. Products come in 15mm and 25mm offsets for hole sizes ranging from M6 threaded holes to Ø9.5mm round holes. Each product is available in both standard and reverse pawl versions.


Attribute
Specifications
Application Punched Hole
Fastener Type Offset Fir Tree
Mating Feature Round / Hex Hole
Mount Size Ø 9.25 - 10.0 mm
Bundle Diameter 0.06 - 1.75" (1.6 - 44.5 mm)
Maximum Panel Thickness ≤ 7.0 mm
Operating Temperature -40 to 125°C / -40 to 257°F
Resin PA66 IMHS
Color Gray
Insertion Force (lbf)

Max.    - 15

Typical - 11
Retention Force (lbf)

Min.     - 50

Typical - 80
Min. Loop Tensile Strength
 50 lbf. (222 N)
