20042-GSK

4 FLUTE CURVE TIE BLK W/GSKT

Our range of fir tree ties provide a variety of solutions for automotive fastening applications. The fir tree features allow manufacturers to mount and secure wire bundles to punched or threaded holes, and the disk portion provides adequate tension between the panels to prevent noise and vibration.

To accelerate installation speeds, the fluted edges lock into panel holes the same way a pawl locks into strap teeth.

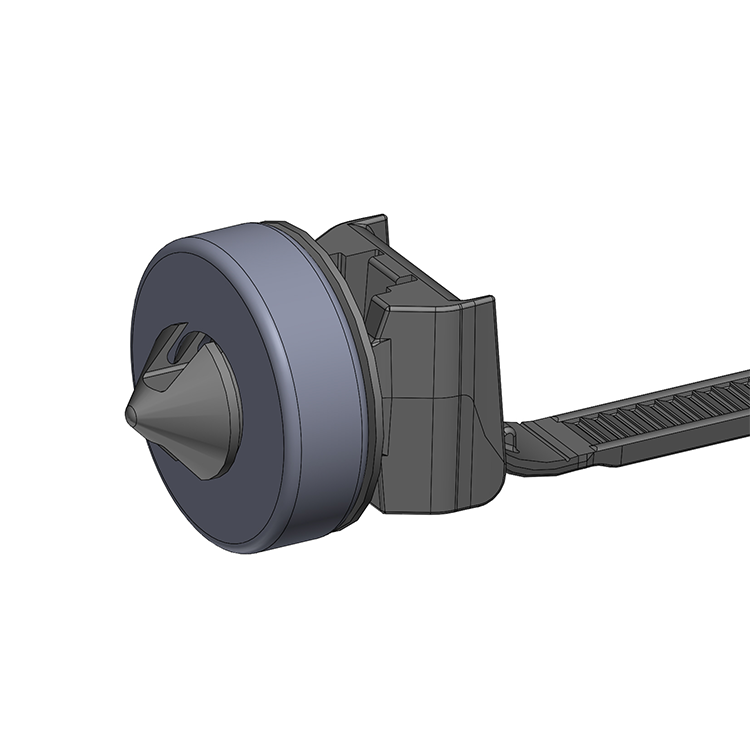

This fastener includes a foam gasket. Gaskets help prevent water ingress from splash in low lying areas such as doors, tire wells and floor pans.  Made from a closed-cell, crosslinked polyethylene foam, the gaskets are securely attached to the base of the fir tree without adhesive. They will not loosen or fall off during transit.


Attribute
Specifications
Application Punched Hole
Fastener Type Straight Fir Tree
Mating Feature Round / Hex Hole
Mount Size Ø 6.35 - 6.85 mm
Bundle Diameter 0.06 - 1.75" (1.6 - 44.5 mm)
Maximum Panel Thickness ≤ 3.0 mm
Operating Temperature -40 to 125°C / -40 to 257°F
Resin PA66 IMHS
Color Black
Insertion Force (lbf)

Max.   -  20

Typical - 10

Retention Force (lbf)

Min.    -  50

Typical - 60

Min. Loop Tensile Strength
50 lbf. (222 N)
