10425-0

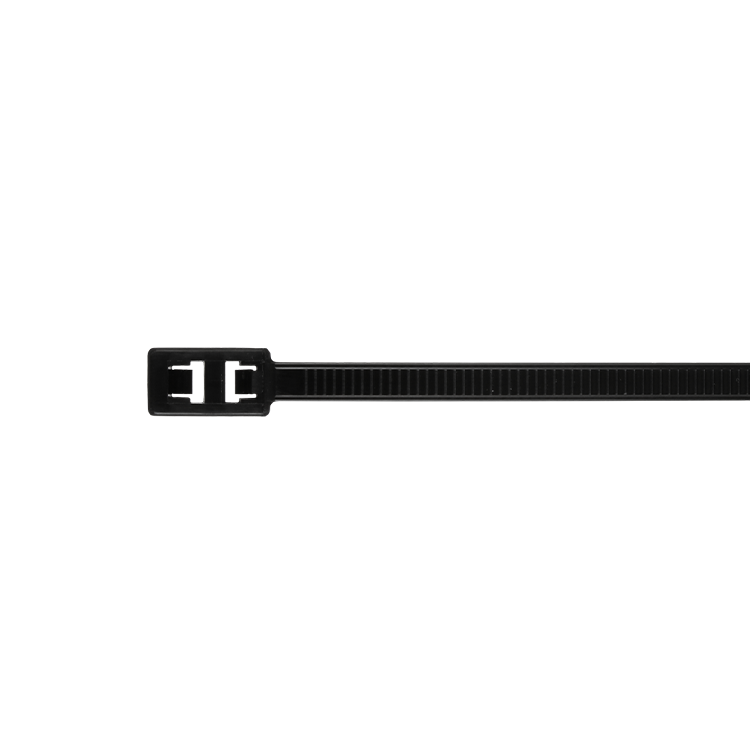

7.5" DOUBLE HEADED, BLK HS

Our Double Headed Cable Ties feature an overall strap length of 7.5" (190.5mm). They allow you to harness two bundles simultaneously or provide a means to position and anchor a single harness. This heat stabilized option is perfect for use in high temperature applications.

Attribute
Specifications
Bundle Diameter 0.06"- 1.75" (1.6mm - 44.5 mm)
Environmental Requirements Heat Stabilized
Width 0.177" (4.5mm)
Thickness 0.055" (1.4mm)
Minimum Tensile Loop Strength 50 lbs. (222 N)
Strap Length 7.5" (190.5mm)
Color Black
Operating Temperature  -40 to 105°C / -40 to 221°F
Quantity Per Bag* 1M
Quantity Per Case* 5M
Panduit Cross Reference PLB2S-M30

*M = 1000
