10008-0

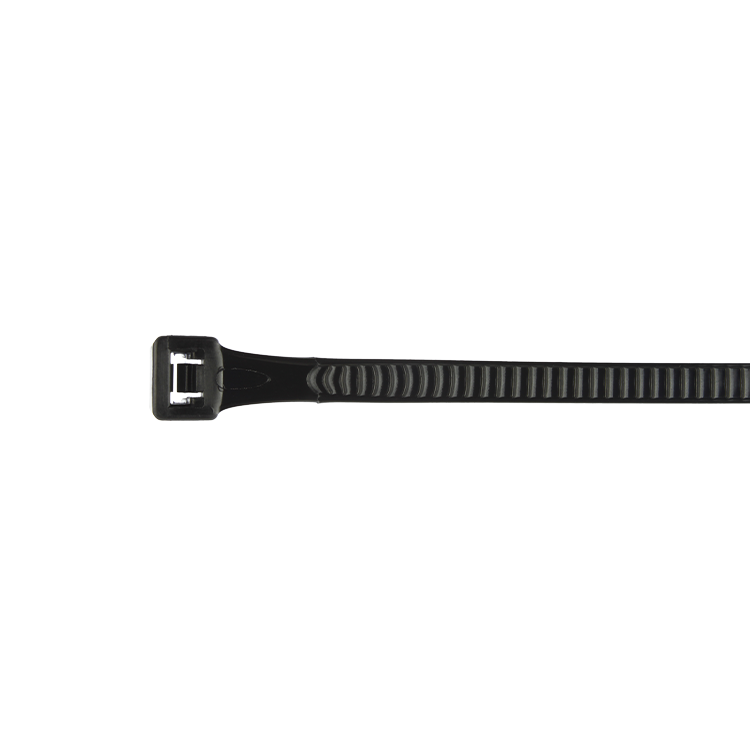

15" SUPER BAR-LOK, BLK HS

Our Super Bar-Lok Ties™ feature an overall strap length of 7.5" (190.5mm) and exceed military specification tensile strength test of 50 lbs, making these ties ideal in applications where extra strength is needed with minimum cross section.

These ties also survive up to 70% longer than conventional solid ties when cyclically loaded in a looped configuration form 0 to 60 lbs, and back to 0 lbs at a frequency of 1 cycle per second. Super Bar-Lok Ties™ do not loosen or relax even under high heat, humidity, or vibration and remains unaffected in applications where grease, oil, and fuels are present. Their light and flexible design is a natural fit for aerospace, marine, aviation, and automotive industries. They are also resistant to extreme temperatures, ultraviolet light, and saltwater spray.

Super Bar-Lok Ties™ are Mil Spec and UL approved.

Attribute
Specifications
Bundle Diameter 0.06" -4.00" (1.6mm - 101.6mm)
Environmental Requirements Heat Stabilized
Width 0.195" (5mm)
Thickness 0.03" (0.8mm)
Minimum Tensile Loop Strength 50 lbf. (222 N)
Strap Length  15.0" (381mm)
Color Black
Operating Temperature  -40 to 105°C / -40 to 221°F
Quantity Per Bag 100
Quantity Per Case* 1M
Military Specification MS-3367-2-0
Panduit Cross Reference PLT4S-C30

*M = 1000
