08472-0

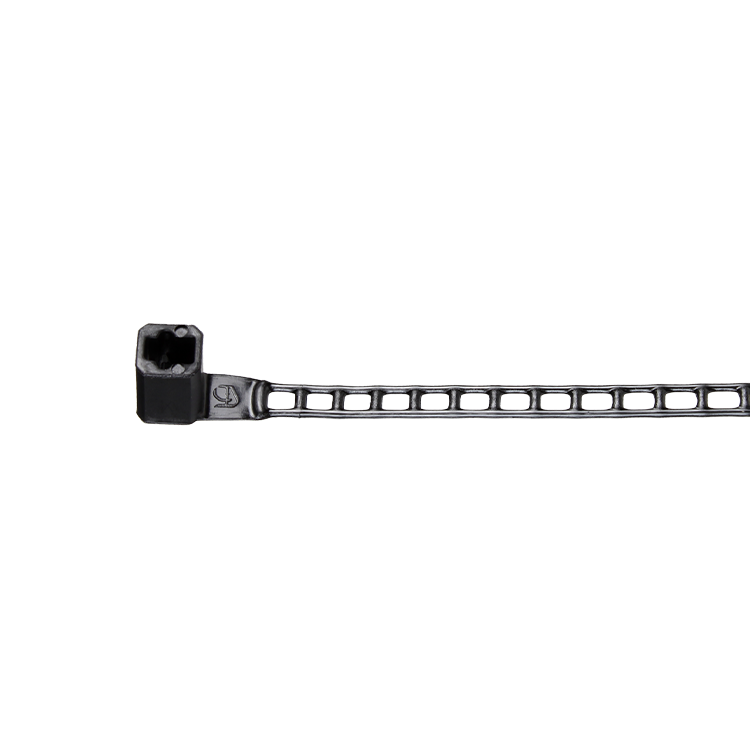

7" LADDER, BLK HS

When compared to its standard equivalent, the Ladder Tie is both friendly to our environment and cost effective.

Ladder Ties use 60% less material than solid standard ties and weighs as much as 60% less. These lightweight ties will save on shipping costs, with a case of Ladder Ties being as much as 17% lighter and a bag being as much as 5% lighter than standard ties. They are even manufactured with 40% of previously used nylon 6/6 material. None of this comprimises the performance of the Ladder tie either, with it consistantly performing higher than the 40lb/18.14Kg tensile strength specification.

The Ladder Tie has been accepted into the automotive, electronics, and industrial industries.

Attribute
Specifications
Bundle Diameter 0.06"- 1.75" (1.6mm - 44.5 mm)
Environmental Requirements Weather/UV Resistant
Width .140" (3.6mm)
Thickness .040" / 1.0mm
Minimum Tensile Loop Strength 40 lbf. (178 N)
Strap Length 7.0" / 177.8mm
Color Black
Operating Temperature  -40 to 105°C / -40 to 221°F
Quantity Per Bag* 1M
Quantity Per Case* 5M
Panduit Cross Reference PLT2I-M30/PLT2S-M30
Thomas and Betts Cross Reference TYH25M

*M = 1000
