08403-0

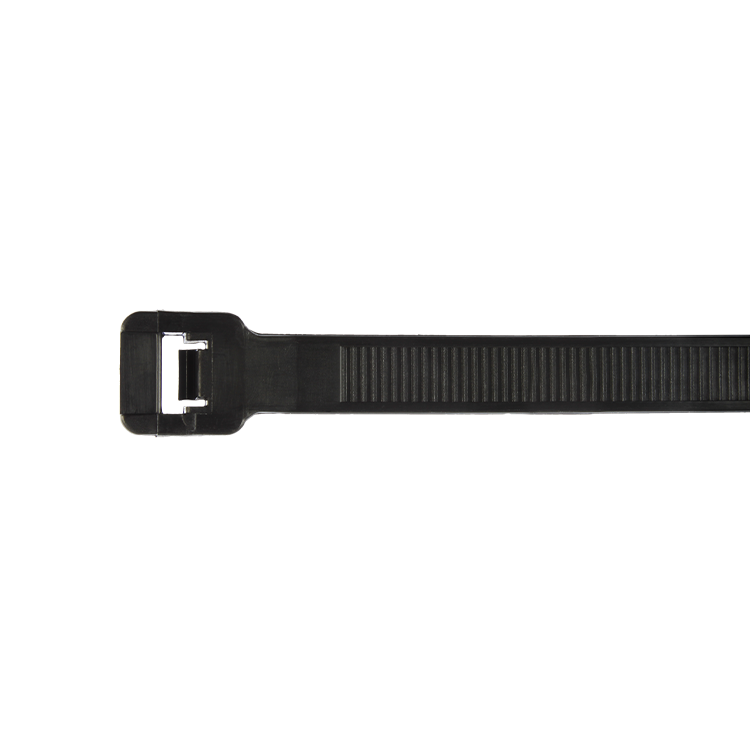

14.5" HEAVY DUTY, BLK HS

This Heavy Duty Cable Tie features an overall strap length of 14.5" (368.3mm). It is designed for use in heavy applications and large bundles having a minimum tensile loop strength of 120 lbf. (534 N). It is also a heat stabilized option which is perfect for use in high temperature applications.

Attribute
Specifications
Bundle Diameter 0.19"- 4.00" (4.7mm- 101.6mm)
Environmental Requirements Heat Stabilized
Width 0.25" (6.4mm)
Thickness 0.074" (1.9mm)
Minimum Tensile Loop Strength 120 lbf. (534 N)
Strap Length 14.5" (368.3mm)
Color Black
Operating Temperature  -40 to 105°C / -40 to 221°F
Quantity Per Bag 100
Quantity Per Case* 1M
Military Specification MS-3367-3-0
Panduit Cross Reference PLT4H-L30
Thomas and Betts Cross Reference TYH27M

*M = 1000
