08402-HHBN

7.5" STANDARD, HIGH HEAT

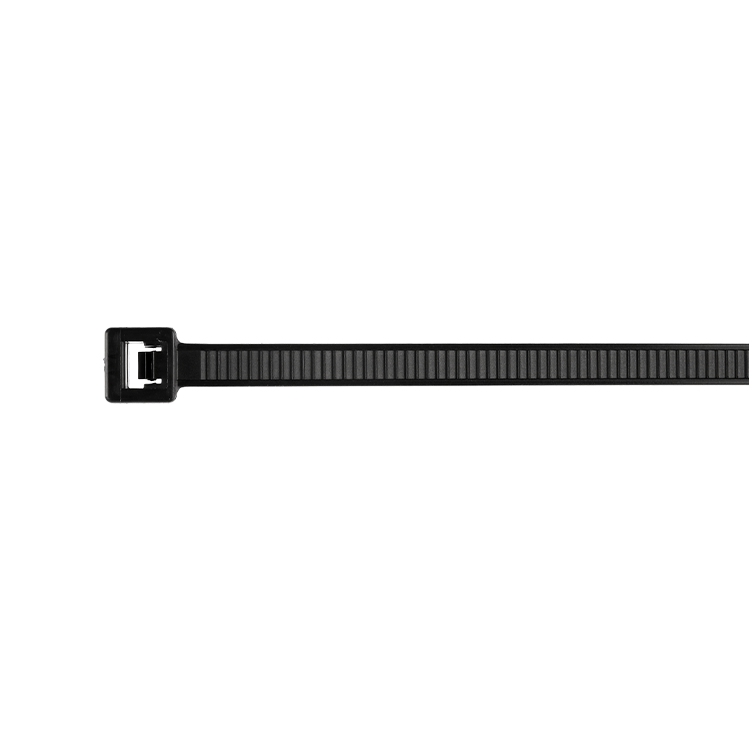

This Standard Cable Tie features an overall strap length of 7.5"(190.5mm). It is designed for use in heavier applications, having a minimum tensile loop strength of 50 lbf. (222 N).

Attribute
Specifications
Bundle Diameter 0.06"- 1.75" (1.6mm - 44.5 mm)
Environmental Requirements Heat Stabilized
Width .177" (4.5mm)
Thickness .050" / 1.2mm
Minimum Tensile Loop Strength 50 lbf. (222 N)
Strap Length 7.5" / 190.5mm
Color Brown
Operating Temperature  -40 to 150°C / -40 to 302°F
Quantity Per Bag* 1M
Quantity Per Case* 5M
Military Specification MS-3367-1-0
Panduit Cross Reference PLT2S-M30
Thomas and Betts Cross Reference TYH25M

*M = 1000
