Fine Fabric™ System 500™ Fasteners

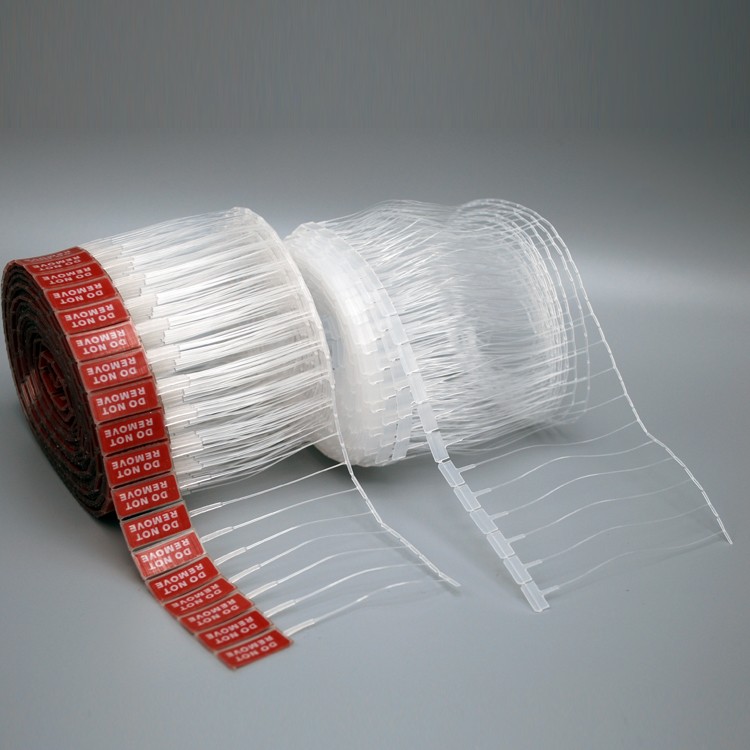

Fine Fabric™ System 500™ fasteners come in reels of 500 fasteners --that's more than most standard attaching tools, reducing time spent reloading smaller clips of fasteners. These fasteners are 25% thinner than our standard fasteners and feature no sharp edges at either end of the fastener. They are also available as a custom graphic fastener. These paddle fasteners prevent ticket switching and have no waste strip to discard when the operator is finished.

Attribute
Specifications
Style Paddle
Loading Type Reel
Per Reel* 500
Package Quantity* 5M
Case Quantity* 50M

*M = 1000

Product # Material Nominal Filament Length Minimum Applied Strength Color
17041-0 Recycled (RPET) 1.63” (41mm)
 2.5 lbf (1.13 kgf)
 Natural
17042-0 Recycled (RPET)
 1.63” (41mm)
 2.5 lbf (1.13 kgf)
 Black
17043-0 Recycled (RPET)
 1.63” (41mm)
 2.5 lbf (1.13 kgf)
 White
16024-0 Polypropylene 0.75” (19mm)  2.0 lbf (0.91 kgf)  Natural
16023-0 Polypropylene 1.77” (45mm)  2.0 lbf (0.91 kgf)  Natural
16022-0 Polypropylene 2.76” (70mm)  2.0 lbf (0.91 kgf)  Natural
16026-0 Nylon 0.75” (20mm)  3.5 lbf (1.59 kgf)  Natural
16025-0 Nylon 1.77” (45mm)  3.5 lbf (1.59 kgf)  Natural



Compatible Tools Include:

Fine Fabric System 500 Handheld (16010-0)

Fine Fabric System 500 Pneumatic (SPU8M)
