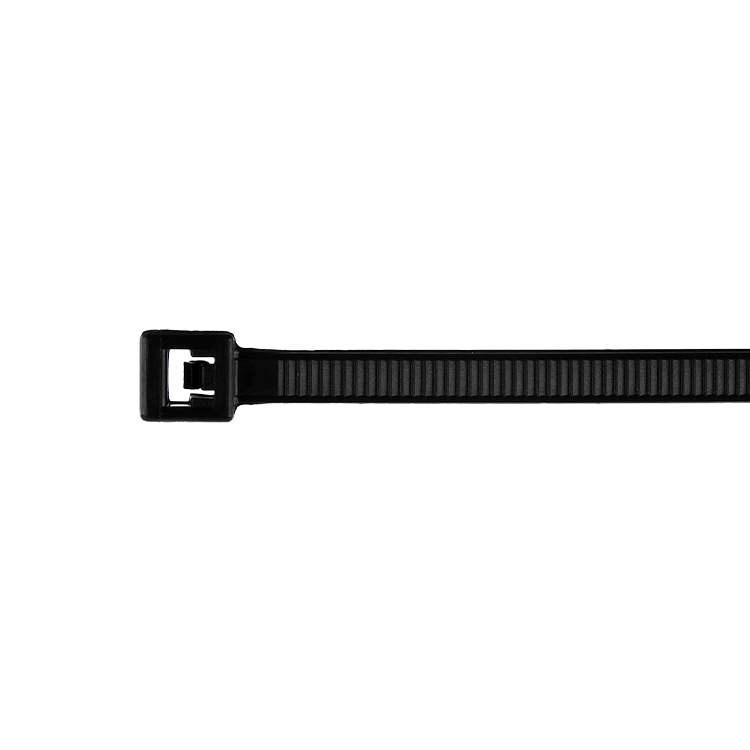

8" Intermediate Cable Ties

These Intermediate Cable Ties feature an overall strap length of 8"(203.2mm). They are designed for use in heavier applications, having a minimum tensile loop strength of 40lbs (18.14Kg).

These ties are available as weather resistant, which is perfect for outdoor applications with greater resistant to ultraviolet lights. There is also a heat stabilized option which is perfect for use in high temperature applications.

Also available with an overall strap length of 5.5"(139.7mm).

Atttribute
Specifications
Bundle Diameter0.06" - 2.13" (1.6mm - 53.9mm)
Width0.13" (3.3mm)
Thickness0.054" (1.4mm)
Minimum Tensile Loop Strength40 lbf. (178 N)
Strap Length8.0" (203.2mm)
Quantity Per Case*5M

* M = 1000

Part #Environmental RequirementsColorOperating TemperatureQuantity Per Bag*
08377-0General Purpose
Natural-20 to 70°C / -68 to 158°F
1M
08380-0Weather/UV Resistant
Black-40 to 80°C / -40 to 176°F
1M
08385-0General Purpose
Natural-40 to 85°C / -40 to 185°F
100
08386-0Weather/UV Resistant
Black-40 to 80°C / -40 to 176°F
100
08401-0Heat Stabilized
Black-40 to 105°C / -40 to 221°F
1M
08664-0General Purpose
Green-40 to 85°C / -40 to 185°F
1M
08671-0General Purpose
Blue-40 to 85°C / -40 to 185°F
1M
08690-0General Purpose
Red-40 to 85°C / -40 to 185°F
1M
08782-0General Purpose
Yellow-40 to 85°C / -40 to 185°F
1M
Part #Military SpecificationsPanduit Cross ReferenceThomas and Betts Cross Reference
08377-0MS-3367-5-9PLT2I-MTY242M
08380-0MS-3367-5-0PLT2I-MOTY242MX
08385-0MS-3367-5-9PLT2I-CTY5242M
08386-0MS-3367-5-0PLT2I-COTY5242MX
08401-0 PLT2I-M30
08664-0MS-3367-5-5PLT2I-M5
08671-0MS-3367-5-6PLT2I-M6
08690-0MS-3367-5-2PLT2I-M2
08782-0MS-3367-5-4
PLT2I-M4
