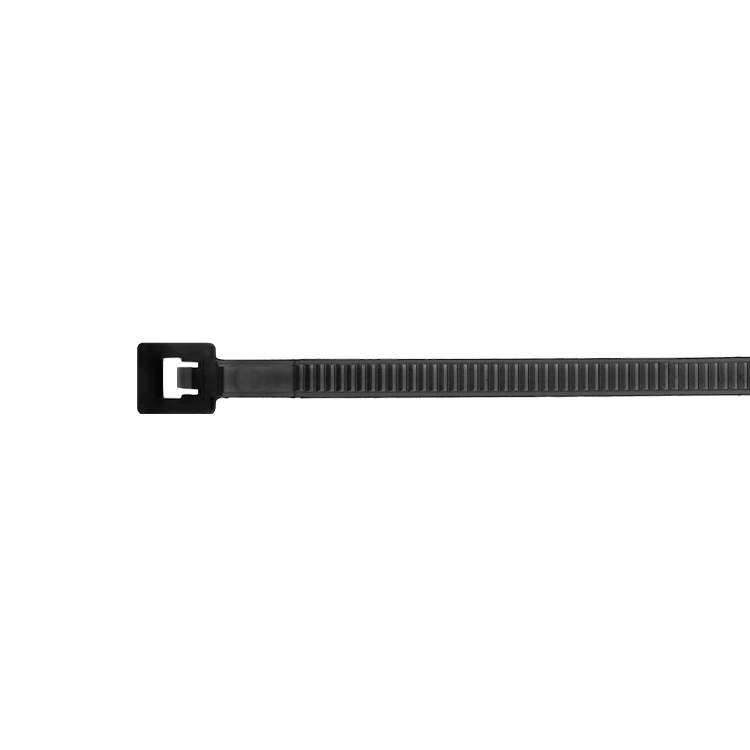

4" Miniature Cable Ties

Our Miniature Cable Ties feature an overall strap length of 4"( 101.6mm) and a minimum tensile loop strength of 18 lbf (80 N), making them a great solution for small and lightweight bundling.

These ties are available as weather resistant, which is perfect for outdoor applications with greater resistant to ultraviolet light. There is also a heat stabilized option which is perfect for use in high temperature applications.

They are available in a range of colors.

Attribute
Specifications
Bundle Diameter0.06" - 0.88" (1.6mm - 22.2mm)
Width.095" (2.4mm)
Thickness
.041" (1.0mm)
Minimum Tensile Loop Strength18 lbf. (80 N)
Strap Length4.0" (101.6mm)

*M = 1000

Part #Environmental RequirementsOperating Temperature ColorQuantity Per Bag*
08404-0Heat Stabilized-40 to 105°C / -40 to 221°F
Black1M
08432-0General Purpose-40 to 85°C / -40 to 185°F
Natural1M
08434-0General Purpose-40 to 85°C / -40 to 185°F
Natural100
08433-0Weather/UV Resistant-20 to 70°C / -68 to 158°F
Black1M
08435-0Weather/UV Resistant-20 to 70°C / -68 to 158°F
Black100
08508-0General Purpose-40 to 85°C / -40 to 185°F
Red1M
08582-0General Purpose
-40 to 85°C / -40 to 185°F
Orange1M
08583-0General Purpose
-40 to 85°C / -40 to 185°F
Yellow1M
08584-0General Purpose
-40 to 85°C / -40 to 185°F
Green1M
08587-0General Purpose
-40 to 85°C / -40 to 185°F
Blue1M
Part #Military SpecificationPanduit Cross ReferenceThomas and Betts Cross Reference
08404-0 PLT1M-M31

08432-0MS-3367-4-9
PLT1M-M
TY23M
08433-0MS-3367-4-9
PLT1M-MO
TY23MX
08434-0MS-3367-4-0
PLT1M-C
TY523M
08435-0MS-3367-4-9
PTL1M-CO
TY523MX
08508-0MS-3367-4-2
PLT1M-M2

08582-0MS-3367-4-3
PLT1M-M3

08583-0MS-3367-4-4
PLT1M-M4

08584-0MS-3367-4-5
PLT1M-M5

08587-0MS-3367-4-6
PLT1M-M6
