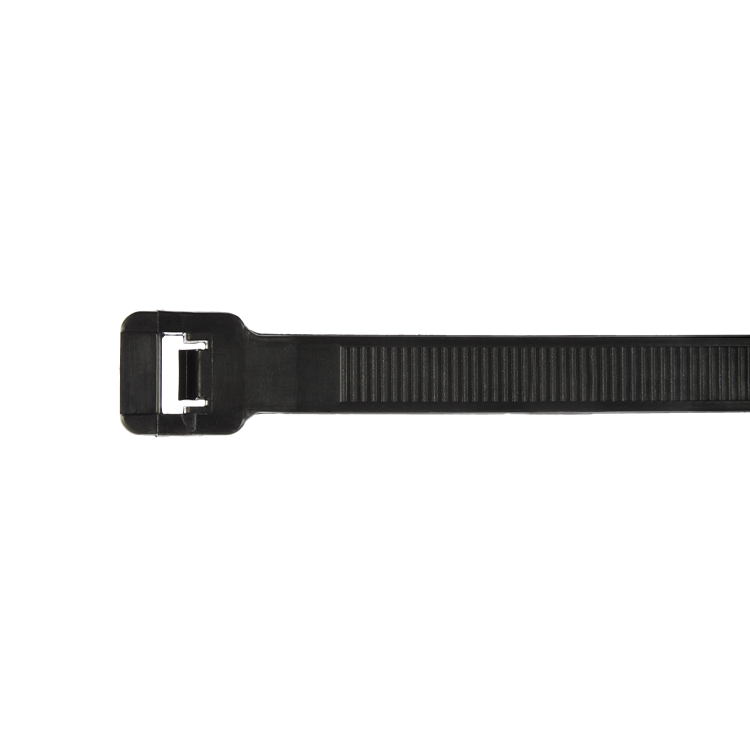

28" Heavy Duty Ties

These Heavy Duty Cable Ties feature an overall strap length of 28" (711.2mm). They are designed for use in heavy applications and large bundles having a minimum tensile loop strength of 120lbs (54.43Kg).

These ties are available as weather resistant, which is perfect for outdoor applications with greater resistant to ultraviolet lights. There is also a heat stabilized option which is perfect for use in high temperature applications.

Also available with an overall strap length of 21"(533.4mm) and 24"(609.6mm).

Attribute
Specifications
Bundle Diameter 0.25"-8.00" (6.3mm - 203.2mm)
Width .303" (7.7mm)
Thickness .075" (1.9mm)
Minimum Tensile Loop Strength 120 lbf. (534 N)
Strap Length 28" (190.5mm)
Quantity Per Bag 100
Quantity Per Case* 1M

*M = 1000

Part # Environmental Requirements Color Operating Temperature
10618-0 General Purpose
 Natural -40 to 85°C / -40 to 185°F
10619-0 Heat Stabilized Black -40 to 105°C / -40 to 221°F
10620-0 Weather/UV Resistant
 Black -40 to 80°C / -40 to 176°F
Part # Military Specifications Panduit Cross Reference Thomas and Betts Cross Reference
10618-0 MS-3367-6-9 PLT8LH-L TY529M
10619-0   PLT8LH-30
10620-0 MS-3367-6-0 PLT8LH-LO TY529MX
