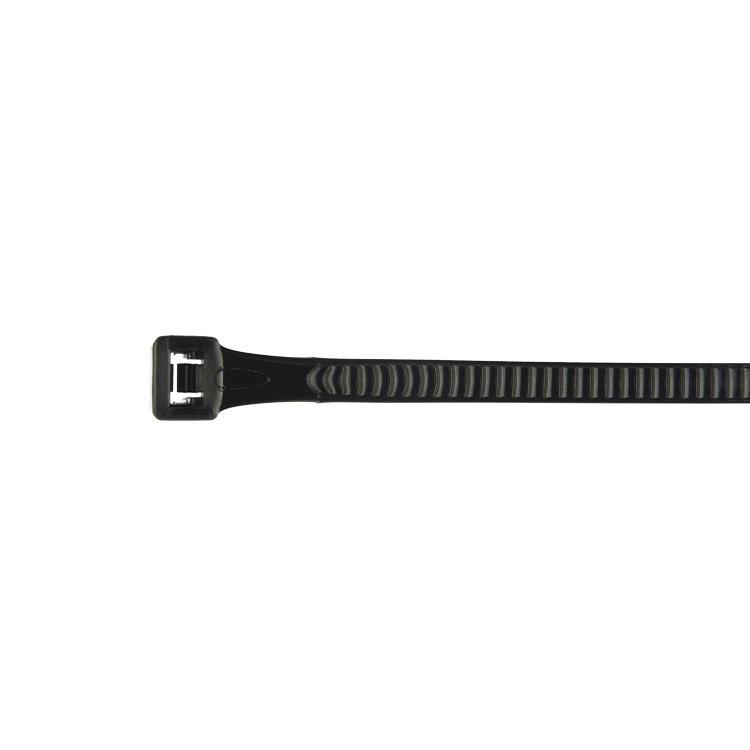

15" Super Bar-Lok® Ties

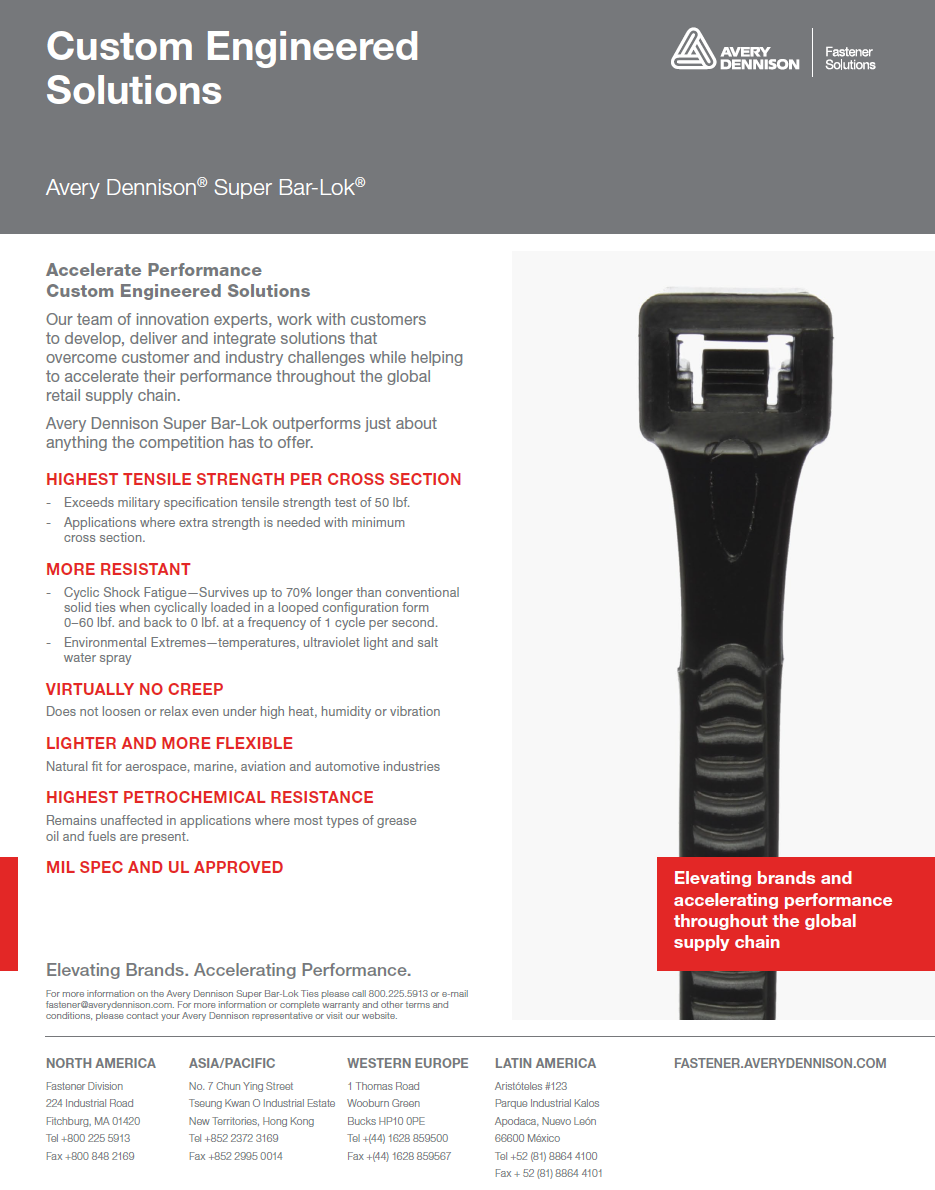

Our Super Bar-Lok Ties™ fetaure an overall strap length of 15" (381mm) and exceed military specification tensile strength test of 50 lbf, making these ties ideal in applications where extra strength is needed with minimum cross section. These ties also survive up to 70% longer than conventional solid ties when cyclically loaded in a looped configuration from 0 to 60 lbs, and back to 0 lbs at a frequency of 1 cycle per second. Super Bar-Lok Ties™ do not loosen or relax even under high heat, humidity, or vibration and remains unaffected in applications where grease, oil, and fuels are present. Their light and flexible design is a natural fit for aerospace, marine, aviation, and automotive industries. They are also resistant to extreme temperatures, ultraviolet light, and saltwater spray.

Super Bar-Lok Ties™ are Mil Spec and UL approved. Also available with an overall strap length length of  7.5" (190.5 mm)

Attribute
Specifications
Bundle Diameter 0.06" - 4.00" (1.6mm - 101.6mm)
Width 0.195" (5mm)
Thickness 0.03" (0.8mm)
Minimum Tensile Loop Strength 50 lbf. (222 N)

Strap Length 15" (381mm)

Part # Environmental Requirements Color Operating Temperature Quantity Per Bag
10006-0 General Purpose
Natural -40 to 85°C / -40 to 185°F
100
10008-0 Heat Stabilized
Black -40 to 105°C / -40 to 221°F
100
10344-0 General Purpose
Natural -40 to 85°C / -40 to 185°F
500
10345-0 Heat Stabilized
Black -40 to 105°C / -40 to 221°F
500
Part # Military Specifications Panduit Cross Reference Thomas and Betts Cross Reference
10006-0
10008-0 MS-3367-2-0 PLT4S-C30
10344-0 MS-3367-2-9 PLT4S-C TY528M
10345-0 MS-3367-2-0 PTL4S-M30 TYH28M
