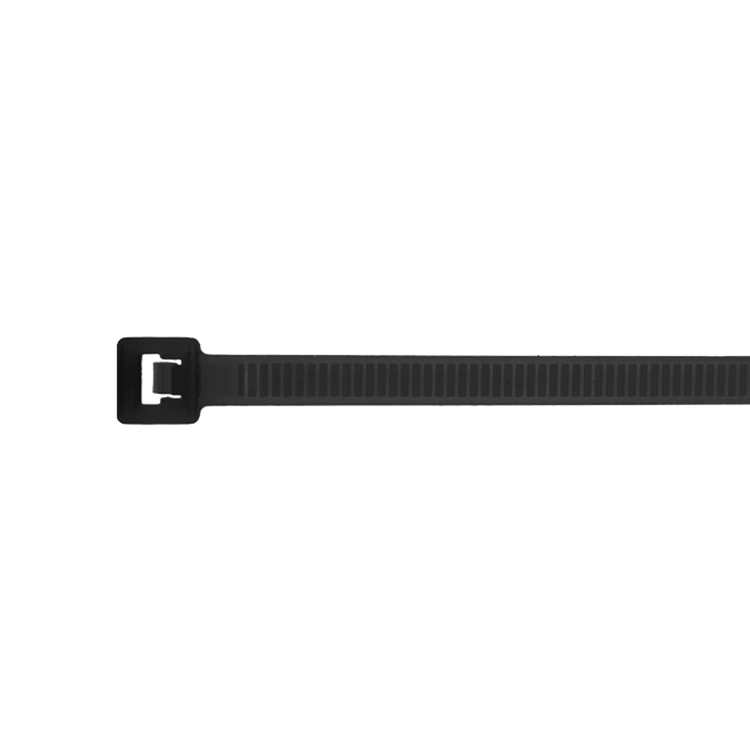

15" Standard Ties

These Standard Cable Ties feature an overall strap length of 15" (381mm). They are designed for use in heavier applications, having a minimum tensile loop strength of 50 lbf (222 N).

These ties are available as weather resistant, which is perfect for outdoor applications with greater resistant to ultraviolet lights. There is also a heat stabilized option which is perfect for use in high temperature applications.

Also available with an overall strap length of 7.5"(190.5mm) and 11"(279.4mm).

Attribute
Specifications
Bundle Diameter 0.06" -4.00" (1.6mm - 101.6mm)
Width 0.177" (4.5mm)
Thickness .053" (1.3mm)
Minimum Tensile Loop Strength 50 lbf. (222 N)

Strap Length 15.0" (381mm)

Part # Environmental Requirements Color Operating Temperature Quantity Per Bag
08416-0 Heat Stabilized
 Black
 -40 to 105°C / -40 to 221°F
 50
08427-0 General Purpose
 Natural
 -40 to 85°C / -40 to 185°F
 50
08428-0 Weather/UV Resistant
 Black -40 to 80°C / -40 to 176°F
 50
10036-0 General Purpose
 Natural -40 to 85°C / -40 to 185°F
 500
10037-0 Weather/UV Resistant
 Natural
 -40 to 80°C / -40 to 176°F
 500
10408-0 Heat Stabilized
 Black
 -40 to 105°C / -40 to 221°F
 500
Part # Military Specifications Panduit Cross Reference Thomas and Betts Cross Reference
08416-0   PLT4S-C30
08427-0 MS-3367-2-9 PLT4S-C TY528M
08428-0 MS-3367-2-0 PLT4S-CO TY528MX
10036-0 MS-3367-2-9 PTL4S-M TY28M
10037-0 MS-3367-2-0 PTL4S-MO TY28MX
10408-0   PLT4S-M30 TYH28M
