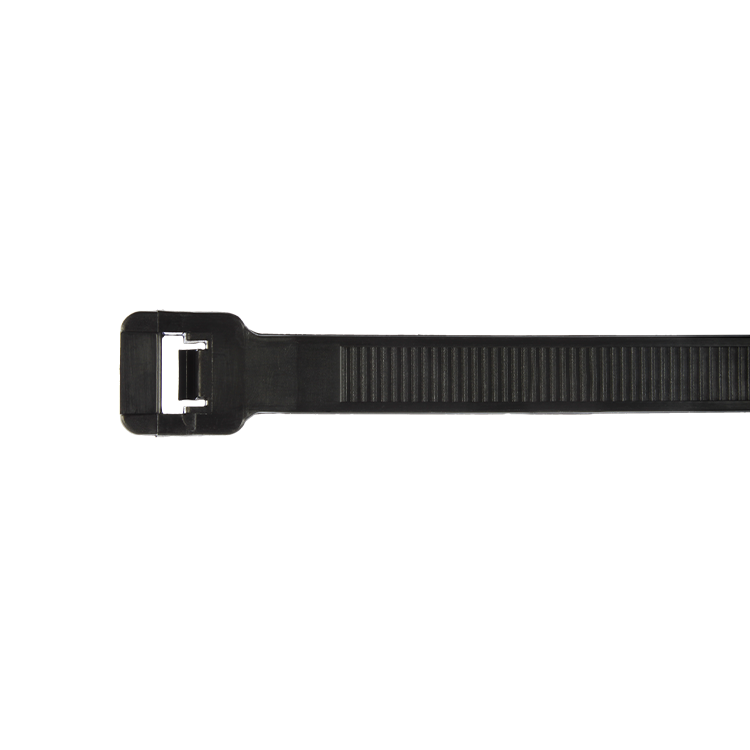

14.5" Heavy Duty Ties

This Heavy Duty Cable Tie features an overall strap length of 14.5" (368.3mm). It is designed for use in heavy applications and large bundles having a minimum tensile loop strength of 120lbs (54.43Kg).

These ties are available as weather resistant, which is perfect for outdoor applications with greater resistant to ultraviolet lights. There is also a heat stabilized option which is perfect for use in high temperature applications.

Also available with an overall strap length of 21"(533.4mm) and 28"(711.2mm).

Attribute
Specifications
Bundle Diameter 0.19"- 4.00" (4.7mm- 101.6mm)
Width 0.25" (6.4mm)
Thickness 0.074" (1.9mm)
Minimum Tensile Loop Strength 120 lbf. (534 N)

Strap Length 14.5" (368.3mm)

Quantity Per Case* 1M

*M = 1000

Part # Environmental Requirements Color Operating Temperature Quantity Per Bag*
08378-0 General Purpose
 Natural -40 to 85°C / -40 to 185°F
 50
08382-0 Weather/UV Resistant
 Black -40 to 80°C / -40 to 176°F
 50
08403-0 Heat Stabilized
 Black -40 to 105°C / -40 to 221°F
 100
10038-0 General Purpose
 Natural -40 to 85°C / -40 to 185°F
 100
10039-0  Weather/UV Resistant
 Black -40 to 80°C / -40 to 176°F
 100
Part # Military Specifications Panduit Cross Reference Thomas and Betts Cross Reference
08387-0 MS-3367-3-9 PLT4H-L TY527M
08388-0 MS-3367-3-0 PLT4H-LO TY527MX
08402-0 MS-3367-3-0 PLT4H-L30 TYH27M
08436-0 MS-3367-3-9   TY27M
08437-0 MS-3367-3-0   TY27MX
