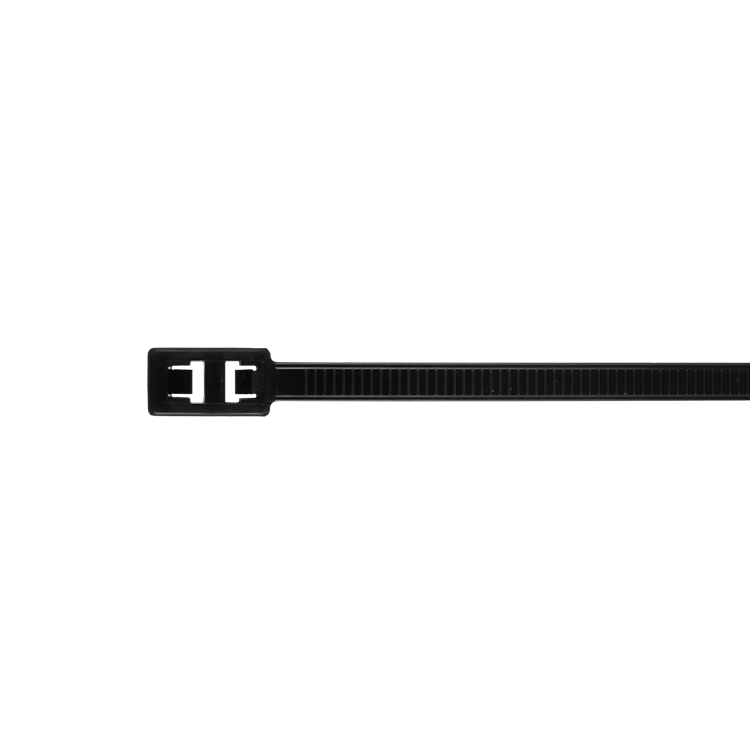

11" Double Headed Ties

Our Double Headed Cable Ties feature an overall strap length of 11" (279.4mm). They allow you to harness two bundles simultaneously or provide a means to position and anchor a single harness.

Also available in an overall strap length of 7.5"(190.5mm).

Attribute
Specifications
Bundle Diameter 0.06" - 3.00" (1.6mm - 76.2mm)
Environmental Requirements General Purpose
Width
0.177" (4.5mm)
Thickness 0.055" (1.4mm)
Minimum Tensile Loop Strength 50 lbf. (222 N)
Strap Length 11" (279.4mm)
Quantity Per Bag* 1M
Quantity Per Bag* 5M

*M = 1000

Part # Environmental Requirements Color Operating Temperature
10430-0 General Purpose
Natural -40 to 85°C / -40 to 185°F
10431-0 Heat Stabilized
Black -40 to 105°C / -40 to 221°F
10432-0 Weather/UV Resistant
Black -40 to 80°C / -40 to 176°F
Part # Panduit Cross Reference
10430-0 PLB3S-M
10431-0 PLB3S-M30
10432-0 PLB3S-M0
