20193-0

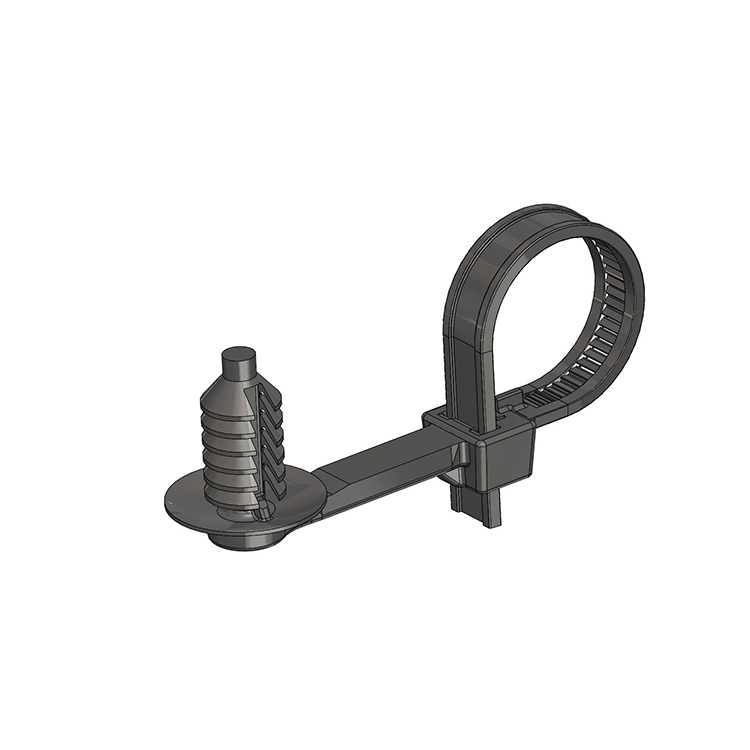

25MM LIFT OFFSET STD. HS

Building on our straight fir tree family of products, we offer a variety of offset fir trees. These allow users to guide harnesses, tubes and hoses away from the mating hole when there is interference from other comonents or harnesses.

Products come in 15mm and 25mm offsets for hole sizes ranging from M6 threaded holes to Ø9.5mm round holes. Each product is available in both standard and reverse pawl versions.

Our Low Insertion Fir Tree or LIFT™ family of cable ties fasteners , offer an ergonomically advanced solution that provides a low insertion force while maintaining high retention characteristics. The unique LIFT™ flute geometry is designed specifically to meet automotive wire harnessing requirements. LIFT™ cable ties help minimize line worker fatigue. By combining our low insertion fir tree technology with high extraction force characteristics, LIFT™ ties outperform alternative fir tree and arrow style fasteners.

Attribute
Specifications
ApplicationPunched Hole
Fastener TypeOffset Fir Tree
Mating FeatureRound / Hex Hole
Mount Size
6.60 ± 0.25 Hole
± 6.35 Hex Hole
Bundle Diameter0.06 - 1.50" (1.6 - 38.1 mm)
Maximum Panel Thickness0.7 to 7.0 mm
Operating Temperature-40 to 125°C / -40 to 256°F
ResinPA66 HS
Material
Nylon 6/6 Heat Stabilized
ColorBlack
Max. Insertion Force15 lbf (66.7 N)
Min. Retention Force45 lbf (200.2N)
Min. Loop Tensile Strength
50 lbf (222.4 N)
Total Length7.23" (183.7 mm)
Strap Width.250" (6.35 mm)
Strap Thickness.053" (1.35 mm)
Qty/Bag
1000
