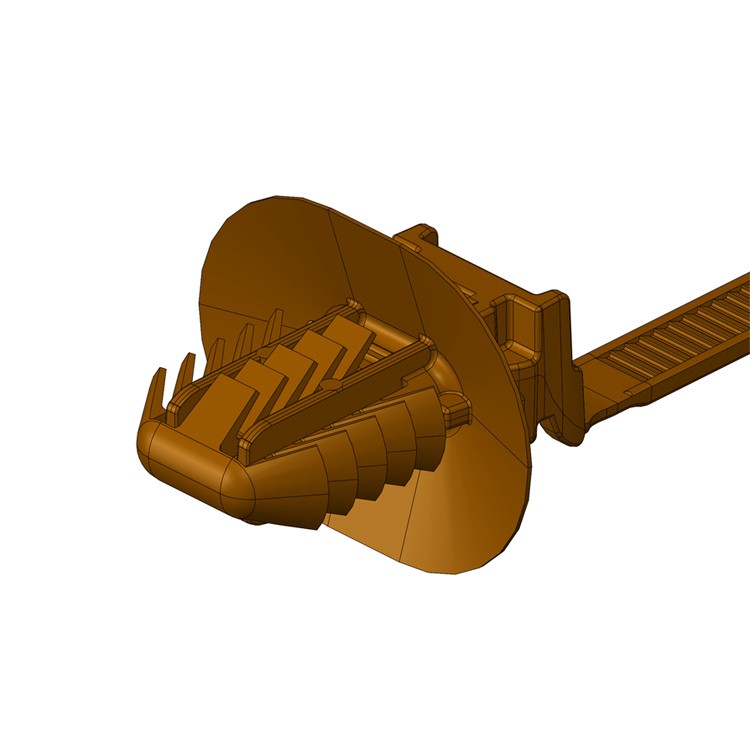

20185-HHBN

OVAL FIR TREE TIE, HI HEAT

This is an oval fir tree style fastener that can provide engineers with the ability to use one part number for a variety of panel thicknesses. The mounting feature on this LIFT™ (Low Insertion Fir Tree) tie accommodates oval & rectangular slotted holes for anti-rotation and harness guidance purposes. The LIFT design means an ergonomic solution with high retention. This tie meets global hole specifications.

Attribute
Specifications
ApplicationPunched Hole
Fastener TypeFir Tree
Mating FeatureOval / Rectangle Hole
Mount SizeOval Slotted Hole Sizes:
6.2 x 12.2mm
6.5 x 12.5mm
6.5 x 13.0mm
7.0 x 12.0mm
Bundle Diameter0.06 - 1.50" (1.6 - 38.1 mm)
Maximum Panel Thickness0.6 to 7.0 mm
Operating Temperature-40 to 150°C / -40 to 302°F
Material
Nylon 6/6, Impact Modified, Heat Stabilized
ResinPA66 HH
ColorBrown
Max. Insertion Force
10 lbf (44.5 N)
Min. Retention Force25 lbf (111.2 N)
Min. Loop Tensile Strength
50 lbf (222.4 N)
Total Length6.97" (177.0 mm)
Strap Width.190" (4.83 mm)
Strap Thickness.051" (1.30 mm)
Qty/Bag
1000
