20174-0

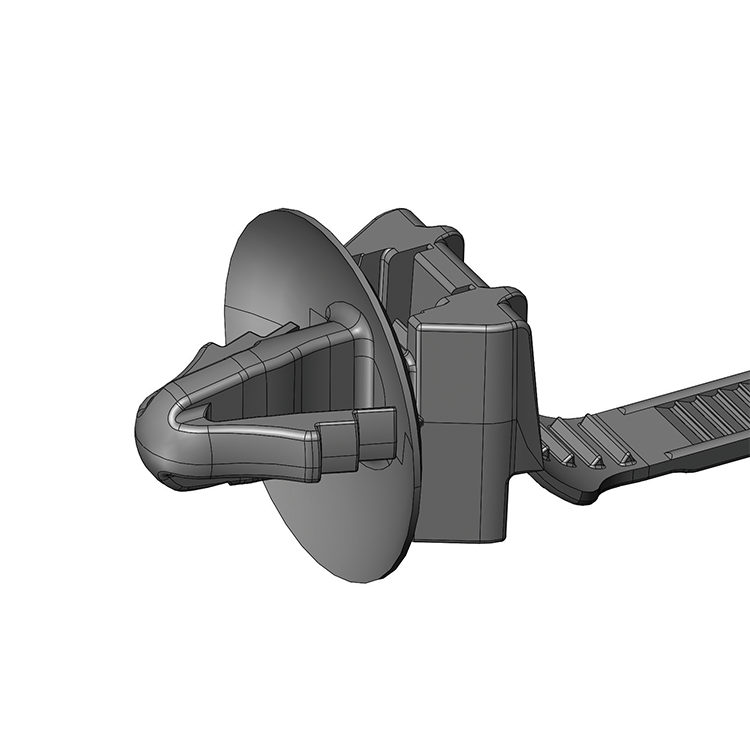

6.6 mm Arrow Tie HS

If you are looking for positive engagement feedback when installing electrical or fluid systems, Avery Dennison offers a family of arrow style fasteners. There are solutions for both round and oval/rectangular holes ranging from 5mm to 9.5mm round holes and 6.2mm-7.0mm x 12mm+. Mating panel thicknesses can be from 0.6 to 10mm. Avery Dennison's designs give engineers the ability to use one part number for a variety of panel thicknesses.

Attribute
Specifications
ApplicationPunched Hole
Fastener TypeArrow
Mating FeatureArrow Hole
Mount SizeØ 6.35 - 7.00 mm
Bundle Diameter0.06 - 1.50" (1.6 - 38.1 mm)
Maximum Panel Thickness≤ 3.6 mm
Operating Temperature-40 to 125°C / -40 to 257°F
ResinPA66 HS
ColorBlack
Max. Insertion Force10 lbf (44.5 N)
Min. Retention Force40 lbf (177.9 N)
Min. Loop Tensile Strength
50 lbf (222.4 N)
Total Length6.30" (160 mm)
Strap Width.190" (4.83 mm)
Strap Thickness.051" (1.30 mm)
Qty/Bag
1000
Material
Nylon 6/6 Heat Stabilized
