20131-HHBN

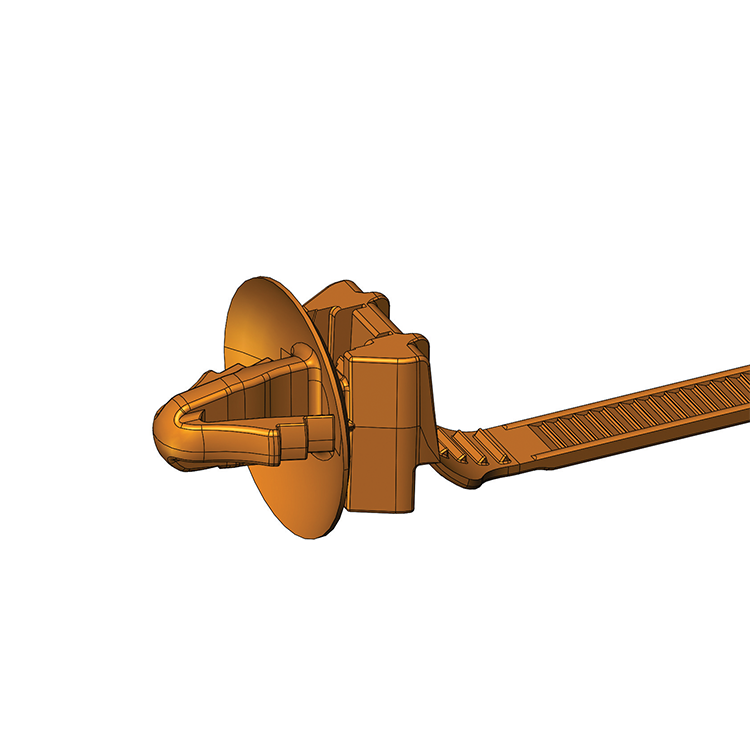

Arrow Tie

If you are looking for positive engagement feedback when installing electrical or fluid systems, Avery Dennison offers a family of arrow style fasteners. There are solutions for both round and oval/rectangular holes ranging from 5mm to 9.5mm round holes and 6.2mm-7.0mm x 12mm+. Mating panel thicknesses can be from 0.6 to 10mm. Avery Dennison's designs give engineers the ability to use one part number for a variety of panel thicknesses.

Attribute
Specifications
Application Punched Hole
Fastener Type Arrow
Mating Feature Arrow Hole
Mount Size Ø 6.35 - 7.00 mm
Bundle Diameter 0.06 - 1.50" (1.6 - 38.1 mm)
Maximum Panel Thickness ≤ 3.5 mm
Operating Temperature -40 to 150°C / -40 to 302°F
Resin PA66 IMHH
Color Brown
Insertion Force (lbf)

Max.     - 10

Typical  - 7
Retention Force (lbf)

Min.      - 40

Typical  - 60
Min. Loop Tensile Strength
 50 lbf. (222 N)
