20111-0

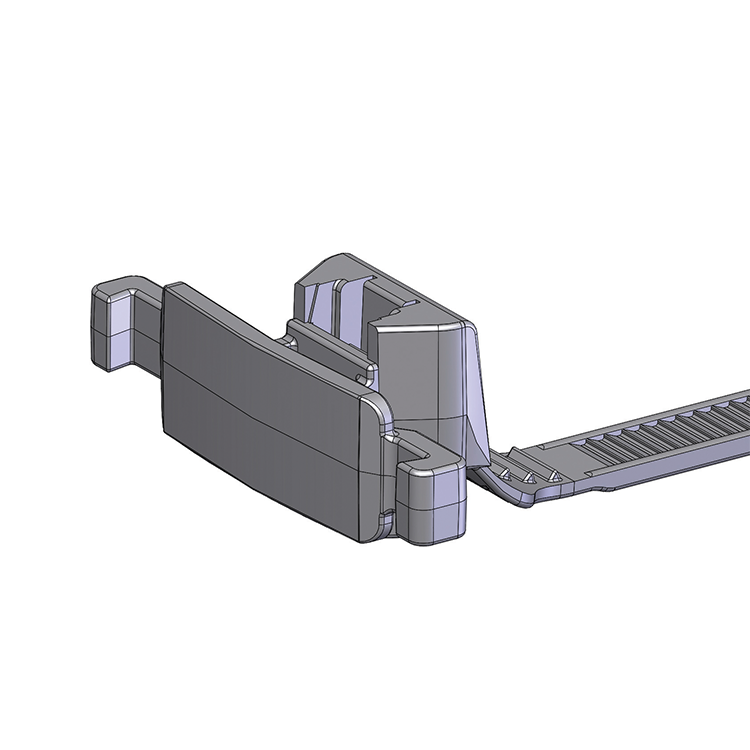

ADAPEX CONN.TIE,BLK.

Avery Dennison's T-Slot Connector Ties offer a solution for securing electrical connectors where inner vehicle wire routing is challenging. T-Slot Ties are designed to fasten easily and securely to prevent rattling and loosening of parts. Our T-Slot conenctor ties fit a wide range of connectors from Delphi, JST, FCI, Tyco, Molex, and Yazaki. To see if your connector is compatible with one of our part numbers, please contact us or click the Compatible Electrical Connectors button on this page.

Benefits:

- Improves assembly efficiency

- Adaptable slot feature to meet specific connector mounting needs

- High temperature materials available

- Eliminate the need for two-piece fastening methods

- Fit a wide range of wire harness diameters

- Punched hole or bracket is not required

Attribute
Specifications
Mating Feature ADAPEX Connector Tie
Mount Size FCI Connector
Bundle Diameter 0.06 - 1.75" (1.6 - 44.5 mm)
Operating Temperature -40 to 125°C / -40 to 257°F
Resin PA66 IMHS
Color Black
Min. Loop Tensile Strength
35 lbf. (156 N)
