20086-0

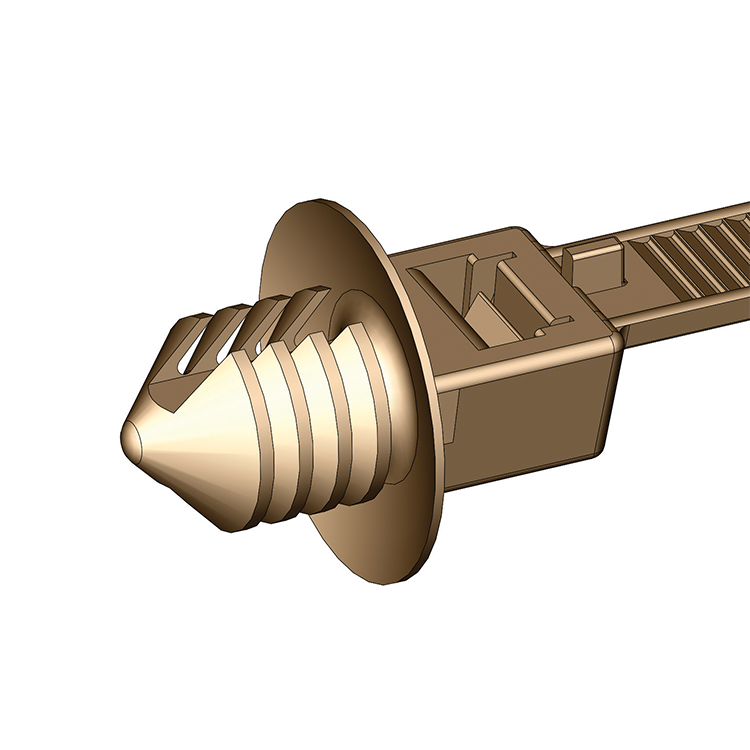

FIR TREE STOPPER TIE

Avery Dennison offers fir tree stopper ties. These fasteners are for securing harness or tubing with a fixed bundle diameter.  The stopping mechanism ensures a consistent bundle diameter & prevents damage from the bundle being cinched too tightly. The fir tree features allow manufacturers to mount & secure wire bundles to punched or threaded holes. The disk  provides adequate tension between panels to prevent noise & vibration.

Attribute
Specifications
ApplicationPunched Hole, Threaded Hole

Fastener TypeStraight Fir Tree
Mating FeatureRound / Hex Hole
Mount SizeØ 7.75 - 8.25 mm / M10
Bundle Diameter22.23 - 44.5 mm
Maximum Panel Thickness≤ 3.0 mm
Operating Temperature-40 to 125°C / -40 to 257°F
ResinPA66 IMHS
ColorBrown
Insertion Force (lbf)

Max.   -  15

Typical -  9

Retention Force (lbf)

Min.    -  40

Typical - 50

Min. Loop Tensile Strength
50 lbf. (222 N)
