20060-0

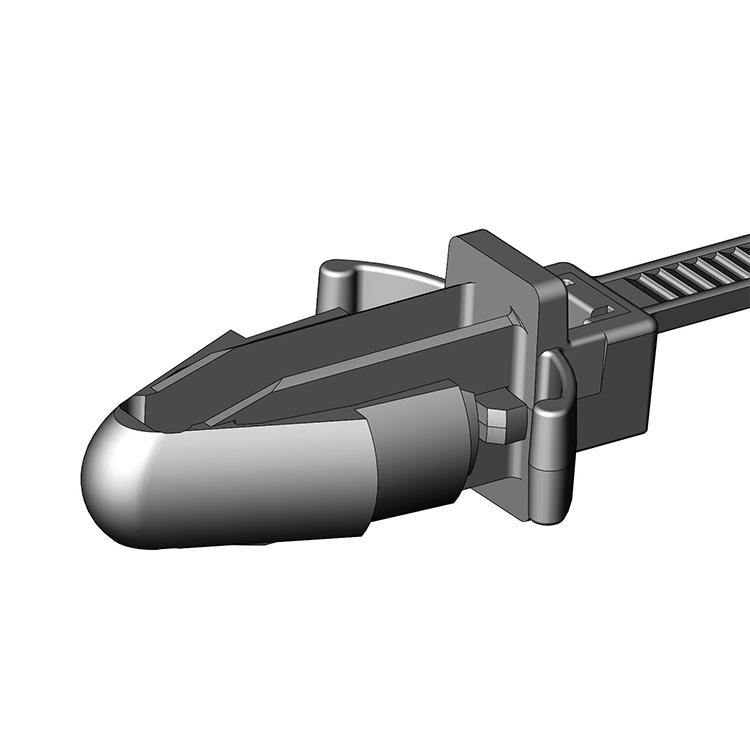

9.5mm ARROW PM 4"L

If you are looking for positive engagement feedback when installing electrical or fluid systems, Avery Dennison offers a family of arrow style fasteners.

Attribute
Specifications
Application Punched Hole
Fastener Type Arrow
Mating Feature Arrow Hole
Mount Size Ø 9.25 - 10.0 mm
Bundle Diameter 0.25 - 0.75" (6.4 - 19.1 mm)
Maximum Panel Thickness ≤ 10.0 mm
Operating Temperature -40 to 125°C / -40 to 257°F
Resin PA66 IMHS
Color Black
Insertion Force (lbf)

Max.    - 10

Typical - 7
Retention Force (lbf)

Min.     - 40

Typical - 30
Min. Loop Tensile Strength
 25 lbf. (111 N)
